Info

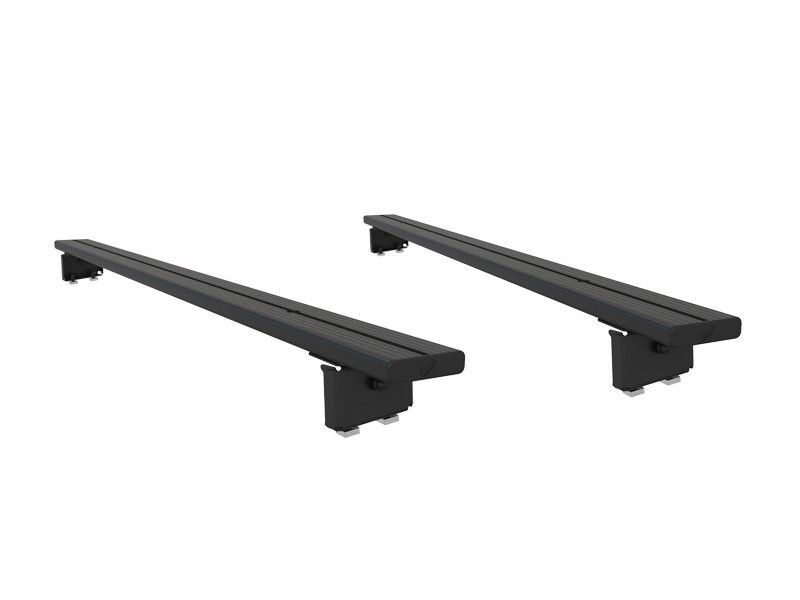

A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 40mm Feet, 2 1165mm Load Bars, 2 1150mm Canopy Tracks, and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the vehicle.

KRCA007 - Canopy Load Bar Kit / 1165mm (W) - by Front Runner


Consisting of:

2 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
1 x LBSK013 - Load Bar Pair 1165mm(W) - by Front Runner
1 x TRCA003 - Canopy Tracks / 1150mm(L) - by Front Runner

 Material used:

Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 7kg (14lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.


 Shipping Dimensions:

Width 245mm (10")
Length 1290mm (51")
Height 115mm (5")


Shipping Weight:

Weight 7.6kg (16.8lbs)
