Info

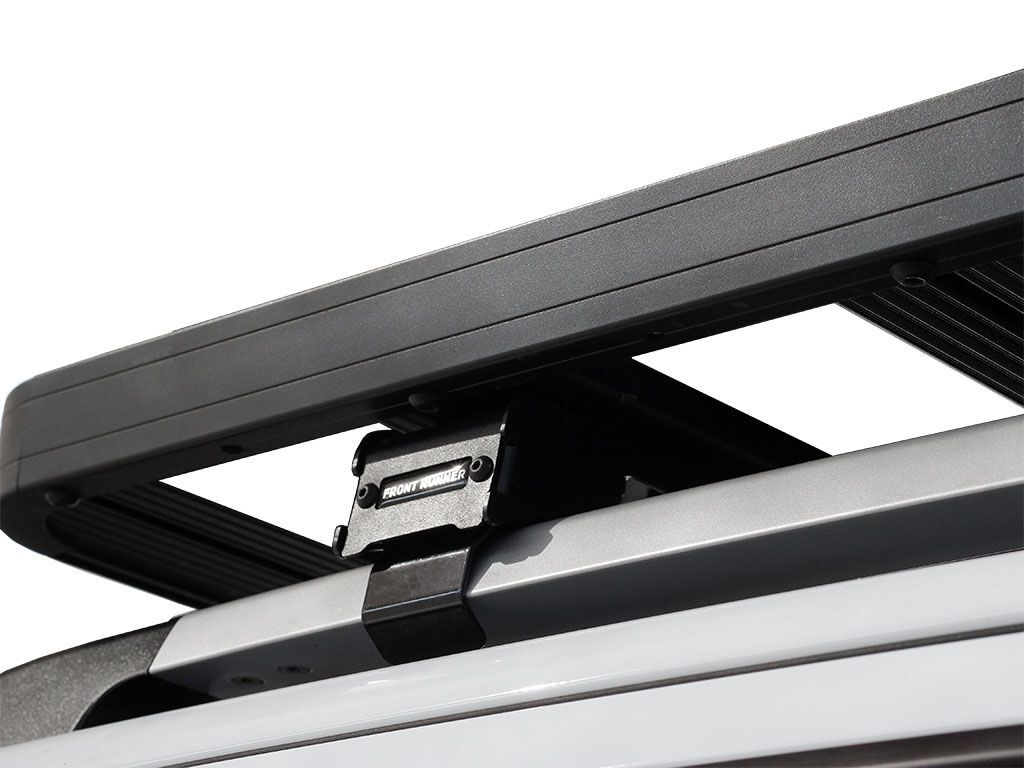

This 1156mm/45.5” long, full-size, Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 pairs of Grab-On Feet to mount the Slimline II Tray to the roof rails of your Ford Ranger T6 Wildtrak. This system installs easily with off-road tough feet that grab on to the existing factory/OEM roof rails. No drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

NOTE: Your vehicle must be equipped with the factory/OEM roof rails in order to use this rack kit.

This rack kit can be removed leaving your vehicle’s roof and roof rails in their original condition.

For a stronger expedition grade cargo carrying solution, Front Runner may offer a specific Foot Rail System to mount the Rack Tray to your vehicle. Front Runner Foot Rail solutions can be installed by removing the factory roof rails or used if no factory roof rails are fitted.

KRFR004T - Ford Ranger T6 Wildtrak (2014-Current) Slimline II Roof Rail Rack Kit - by Front Runner


Consisting of:

2 x GOFR001 - Rail Foot Base (Pair) - by Front Runner
2 x GORR053 - Raised Rail Outer Grab-On / No. 4 - by Front Runner
2 x GORR073 - Raised Rail Inner Grab-On / D - by Front Runner
1 x RRAC904 - Plastic Spacer for Rail Foot Base / 10mm (Pair)
1 x RRSTA06 - Slimline II Tray - 1165mm(W) X 1156mm(L) - by Front Runner
1 x WDST011 - Wind Deflector 20mm Lip Extra Narrow Pair / 1165mm(W) - by Front Runner

 Material used:

Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 20kg (43lbs)

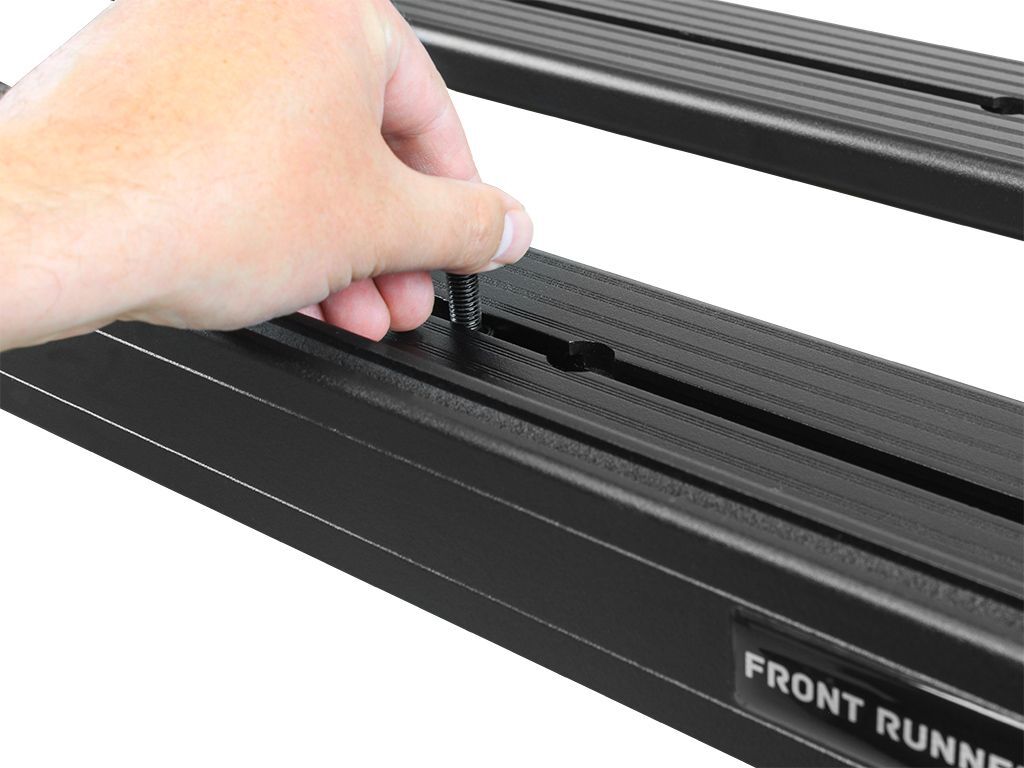

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

 Shipping Dimensions:

Width 455mm (18")
Length 1610mm (63")
Height 285mm (11")


Shipping Weight:

Weight 22.9kg (50.4lbs)
