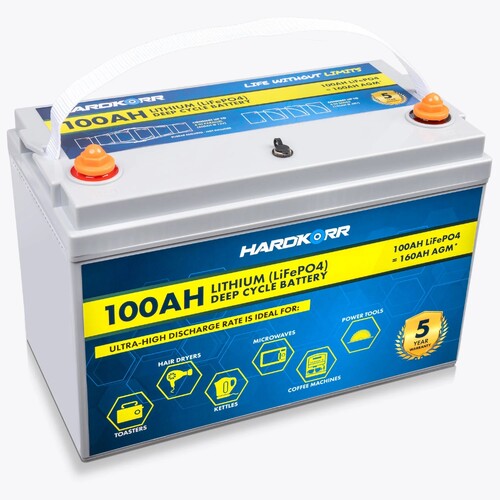

Hard Korr 100Ah Lithium (LiFePO4) Deep Cycle Battery









Handy remote reset switch

The Battery Management System (BMS) inside all lithium batteries contains a protection circuit which trips if the voltage drops below a certain setpoint. In the case of Hardkorr batteries, it is set at 10.0V. This circuit prevents damage to the battery by putting it into a ‘sleep’ mode until it is reset.

In the past, resetting the battery after the over-discharge protection was activated was not easy. Whilst some battery chargers do contain a “wake-up” function, most people had to resort to applying a constant voltage above 12V across the terminals using jumper leads or home-made wires. This was fraught with danger; damage to appliances or the battery were not uncommon.

Our batteries provide an easy solution to this problem; simply connect our included remote reset switch to the socket on the top face of the battery and hold down the button for 5 seconds, and the over-discharge circuit will reset itself. The button can also be flush-mounted into your 12v setup if desired.



Shake it Baby!

Model ABS plastic cell holders

Ensures better stability and longevity when batteries are used in high-shock and high-vibration environments such as marine and vehicle applications.





All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 5-year Australian warranty and a 30-day money back guarantee.

Our latest 100Ah lithium (LiFePO4) deep-cycle batteries are the most reliable, long-lasting batteries we have ever manufactured. With outstanding performance characteristics and full international certification, you'll never be caught short of 12v power on your 4wding and camping adventures again! Coming in a standard Group 27 (N70) size case, they are will fit into standard-sized battery boxes and trays.

These batteries are made using best-in-class robotic manufacturing processes with rigorous quality assurance (including serialised tracking) and pre-shipment cycle testing. We even store the test report for each battery for later reference if needed. That's why we can now confidently offer you a 5-year Australian warranty.

More usable power, longer life

When comparing batteries it is vitally important to understand the difference between nominal and C20 capacity. To reduce confusion and help to standardise the measurement of battery capacity, most reputable battery manufacturers will quote the capacity of their battery in amp-hours at C20 (also written as C/20), which means the number of amps the battery can deliver if discharged at a constant rate over a period of 20 hours. Using this standard, a fully-charged battery with a capacity of 100Ah could deliver 5A of current per hour for a period of 20 hours before becoming fully discharged (5A x 20h).

Some disreputable manufacturers, however, will advertise the nominal capacity of their batteries and bury the C20 rating in the fine print. Nominal capacity has no practical application and can be up to 20% higher than the C20 rating, so a battery that is advertised as a 100Ah battery might only be able to deliver 80Ah or even less.

We value our good reputation, and will always quote the C20 rating (or even higher) as the battery's capacity. This means you can be confident that the power we say our batteries can deliver is not inflated to mislead, create confusion or invite unfair comparisons.



ATTENTION: This battery is not suitable for under bonnet use.

* Note on discharge current: if you connect multiple batteries in parallel, the maximum discharge current is multiplied by the number of batteries in the array. For example, if you connect two of these batteries in parallel you can discharge at up to 200A.

Specifications



Nominal voltage 12.8V
Capacity (C5) 100Ah
Max series/parallel config 4S/6P
Normal charge voltage 14.4V ± 0.2V
Standard charge current 50A
Max discharge current (constant) 100A (1C)*
Max discharge current (pulse) 200A
Discharge cut-off voltage 10.0V
Charge temp 0°C to 55°C
Discharge temp -20°C to 60°C
Storage temp 0°C to 45°C
Ingress protection IP64
Self-discharge
Weight 12.0kg
Dimensions 330mm x 173mm x 216mm (Group 27)
Certifications UN 38.3, UL 1642, IEC 62133-2:2017, IEC 62619:2017, CE
SKU HKPBATL100C
Model # HKPBATL100C
Barcode # 9350466001167
Brand Hard Korr
Shipping Weight 14.0000kg
Shipping Width 0.290m
Shipping Height 0.240m
Shipping Length 0.380m
Shipping Cubic 0.026448000m3
