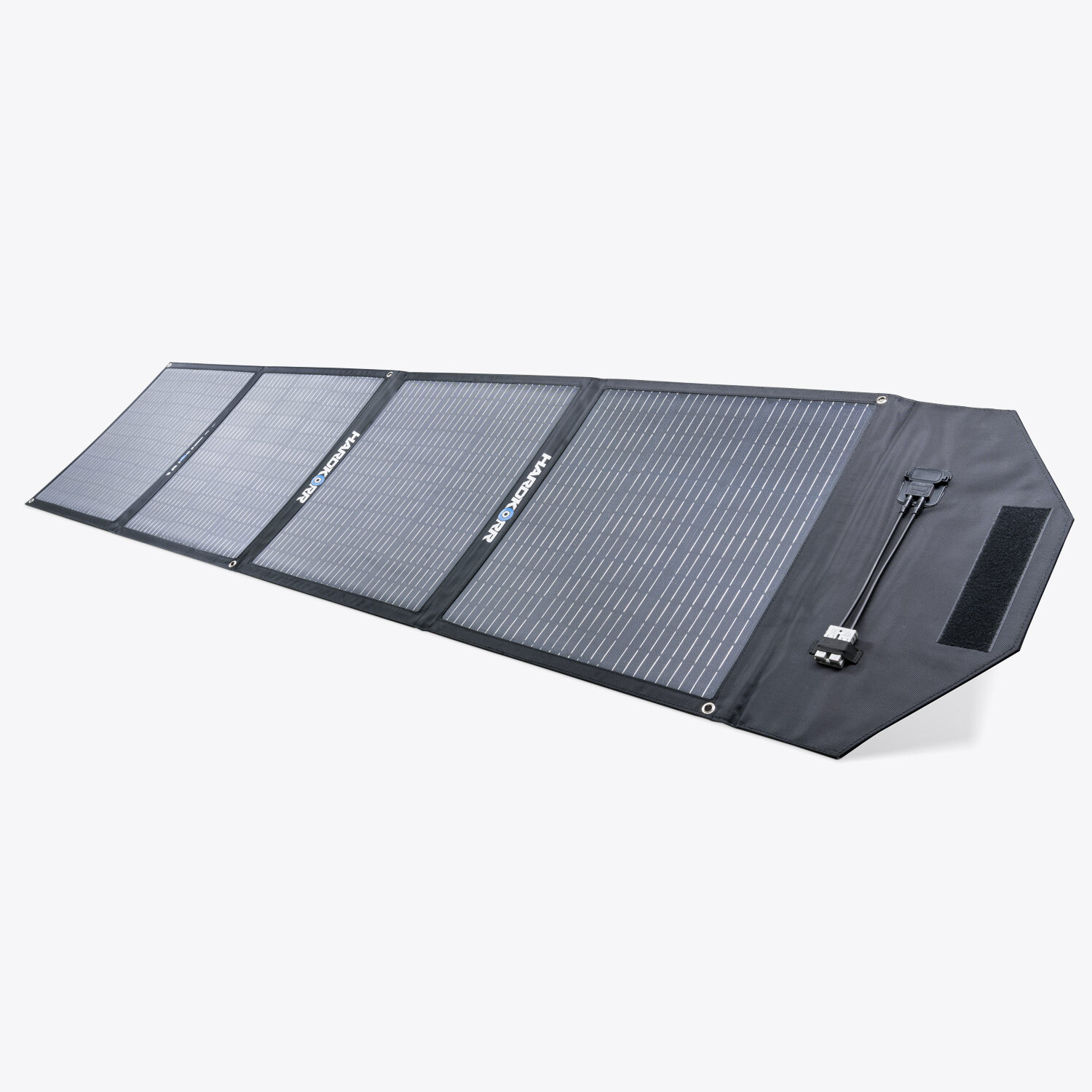

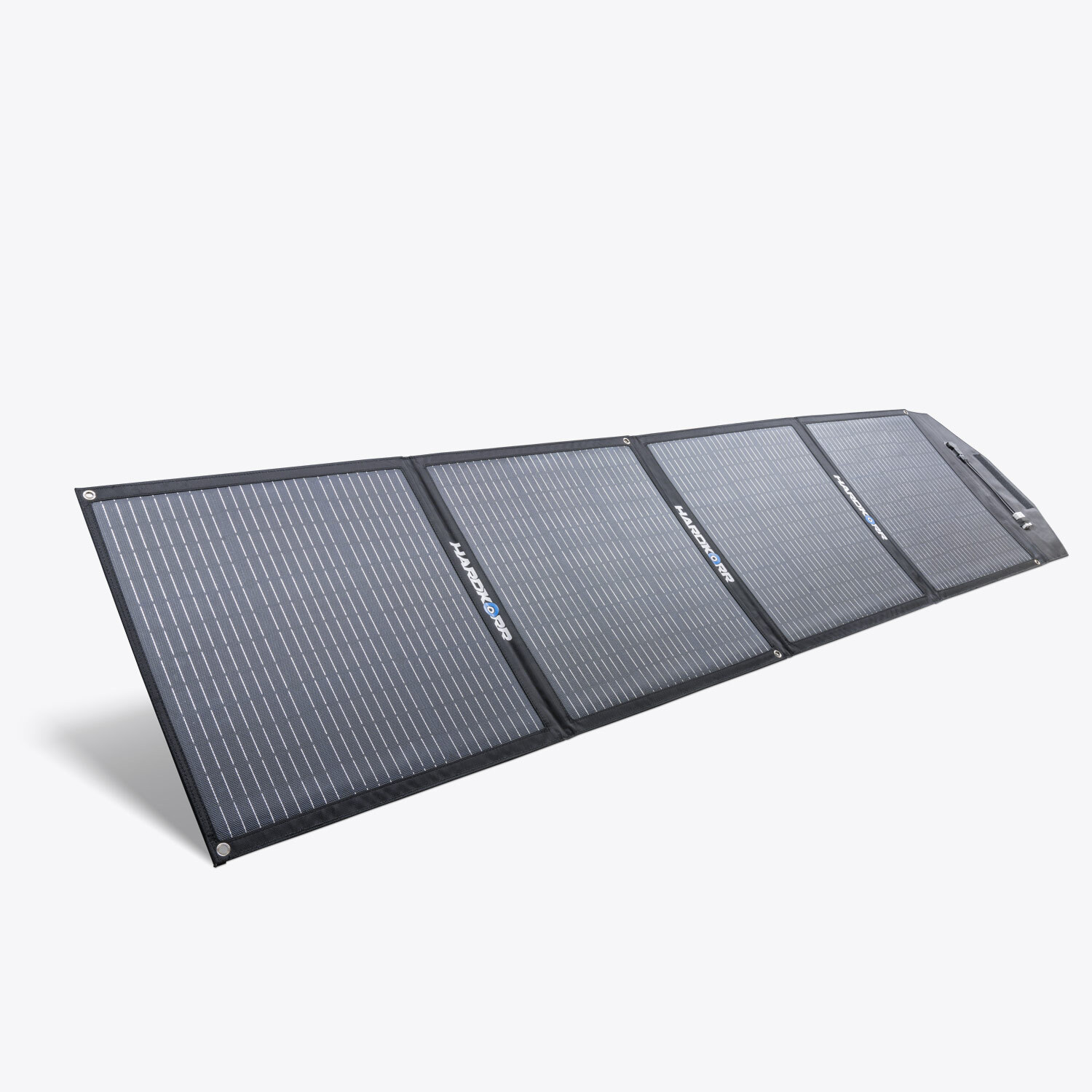

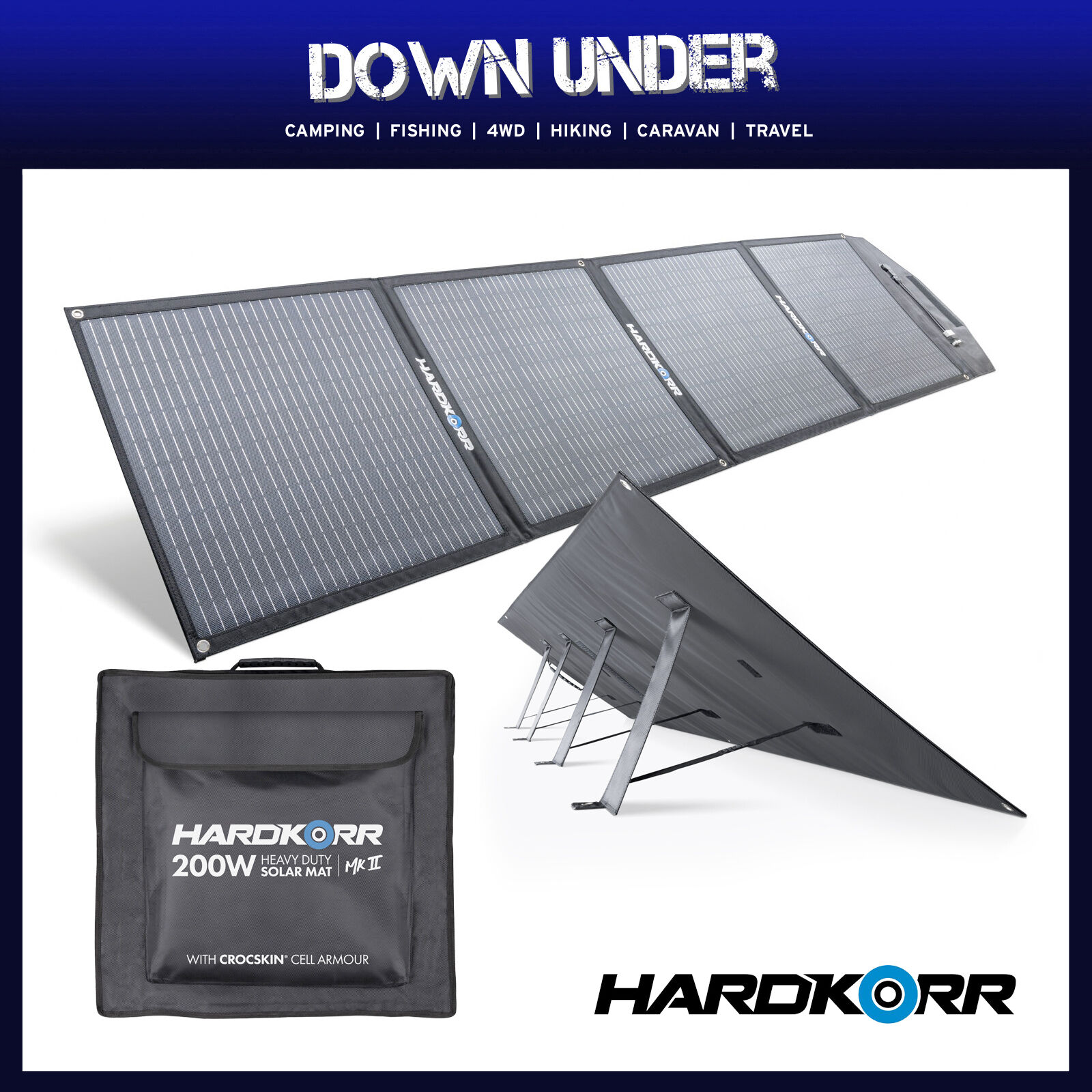

Hard Korr 200w Solar Mat MKII With Croc Skin - No Regulator

200w Heavy Duty Portable Solar Mat MKII
No regulator

Our new MKII panels are the latest evolution of the Hardkorr Crocskin Solar Mat range. Now more compact than ever before, our new panels are 30% lighter than our previous models but able to produce even more power at up to 12.6A.







Easy to setup, hightly efficient







All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 3-year Australian warranty and a 30-day money back guarantee.

Get the optimal angle to the sun

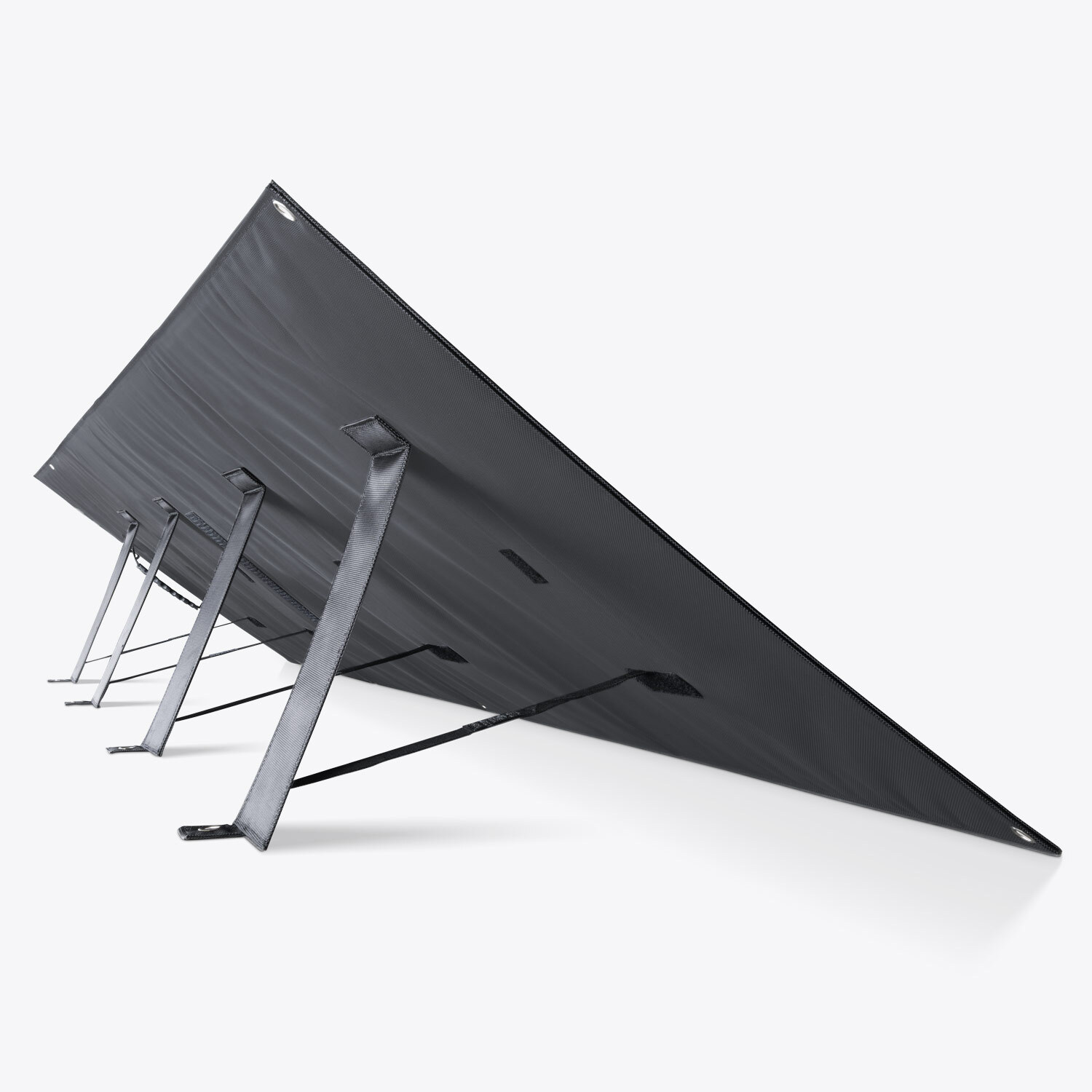

Inbuilt legs on the back of the panel



Helping you to get the most out of your setup is theinbuilt legs on the back of the panel. Folded and secured onto the back of the panel with a strong Velcro fitting, these legs drop down and will help you get the optimal angle to the sun,increasing efficiency sometimes more than 20%. The panels have also been individually wired –a bit of shade on one panel isn’t going to stop the panel from doing its thing.

Supercharged 22.5% efficiency rate

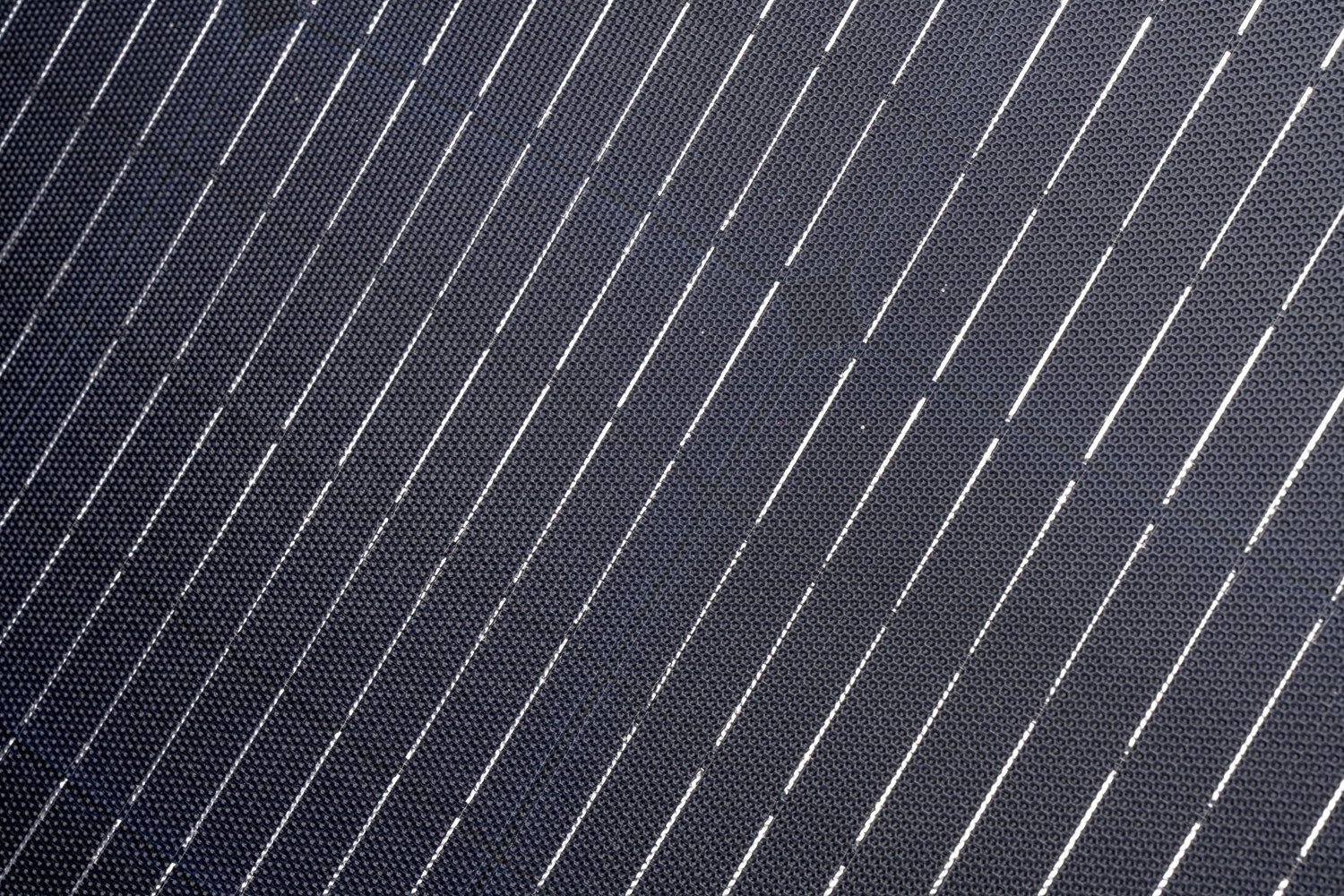

A-grade monocrystalline cells



Behind the surface is where our MKII panels excel.Capable of producing up to 12.6A, we’ve used a-grade monocrystalline cells with a supercharged 22.5% efficiency rate – among the highest on the market. What does this mean? The panel will turn the captured UV into more power than what you might be seeing from a competitor’s panel. It makes this panelideal for those after a bit of extra power in larger setup like those travelling in caravans, otherwise, it’s great as a standalone charging option for those with smaller setups.

Specifications



Cell type A-grade monocrystalline silicon
Cell efficiency 22.5%
Cell backing Solid copper
Cell coating Crocskin® cell armour

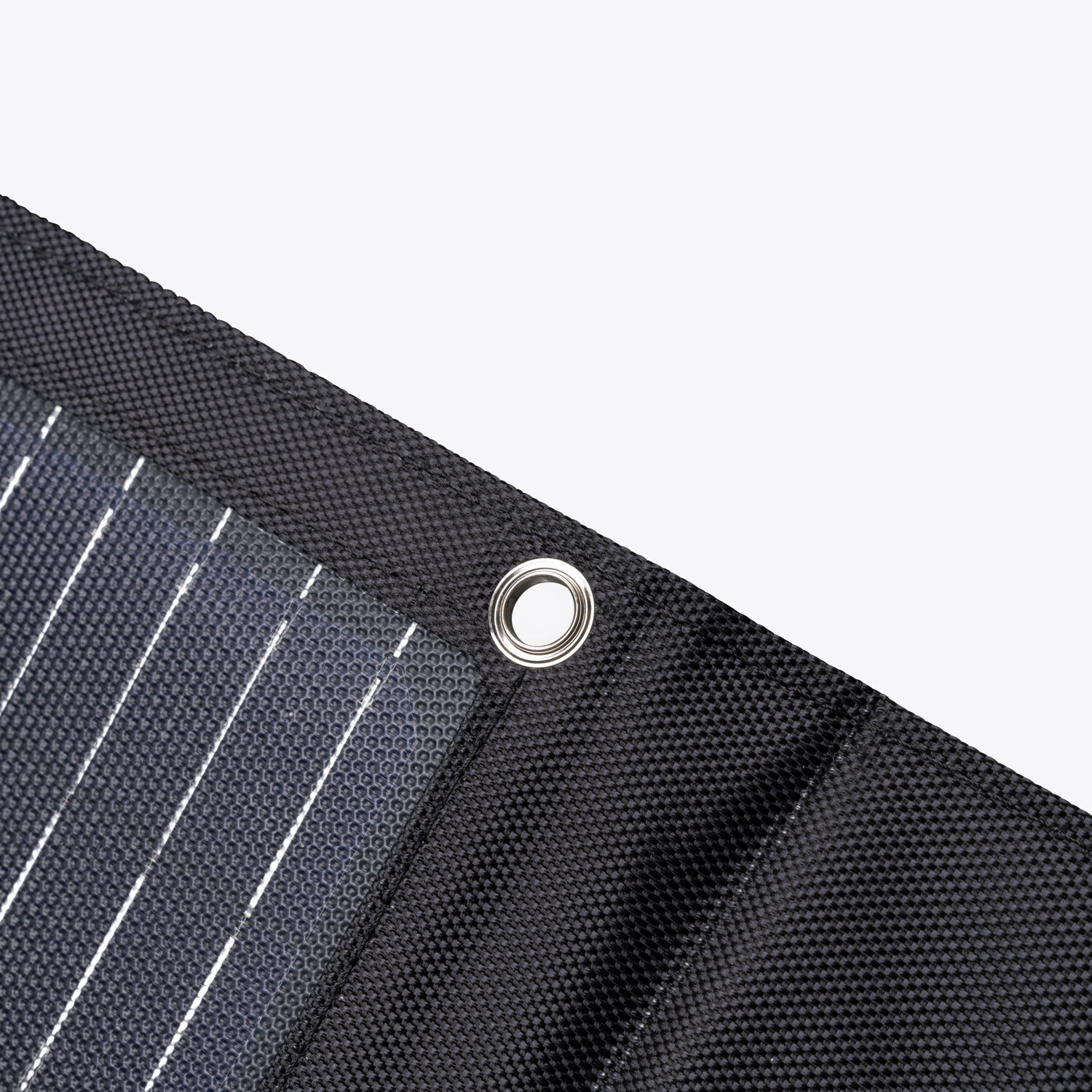

Canvas 1680D Ballistic Nylon
Wattage 200W
Working max. voltage (Vmp) 20.0V
Working max. current (Imp) 12.6A
Open circuit (Voc) 23.6V
Short circuit (Isc) 13.7A
Ingress Protection (IP) Rating IP64 (splashproof/rainproof)
Dimensions (folded) 580mm x 560mm x 40mm
Dimensions (unfolded) 2515mm x 575mm
Weight 9.5kg (incl. cables)
Operating temperature -40°C to 85°C
Certifications CE, RoHS, TUV (IEC-61730,IEC-61215)

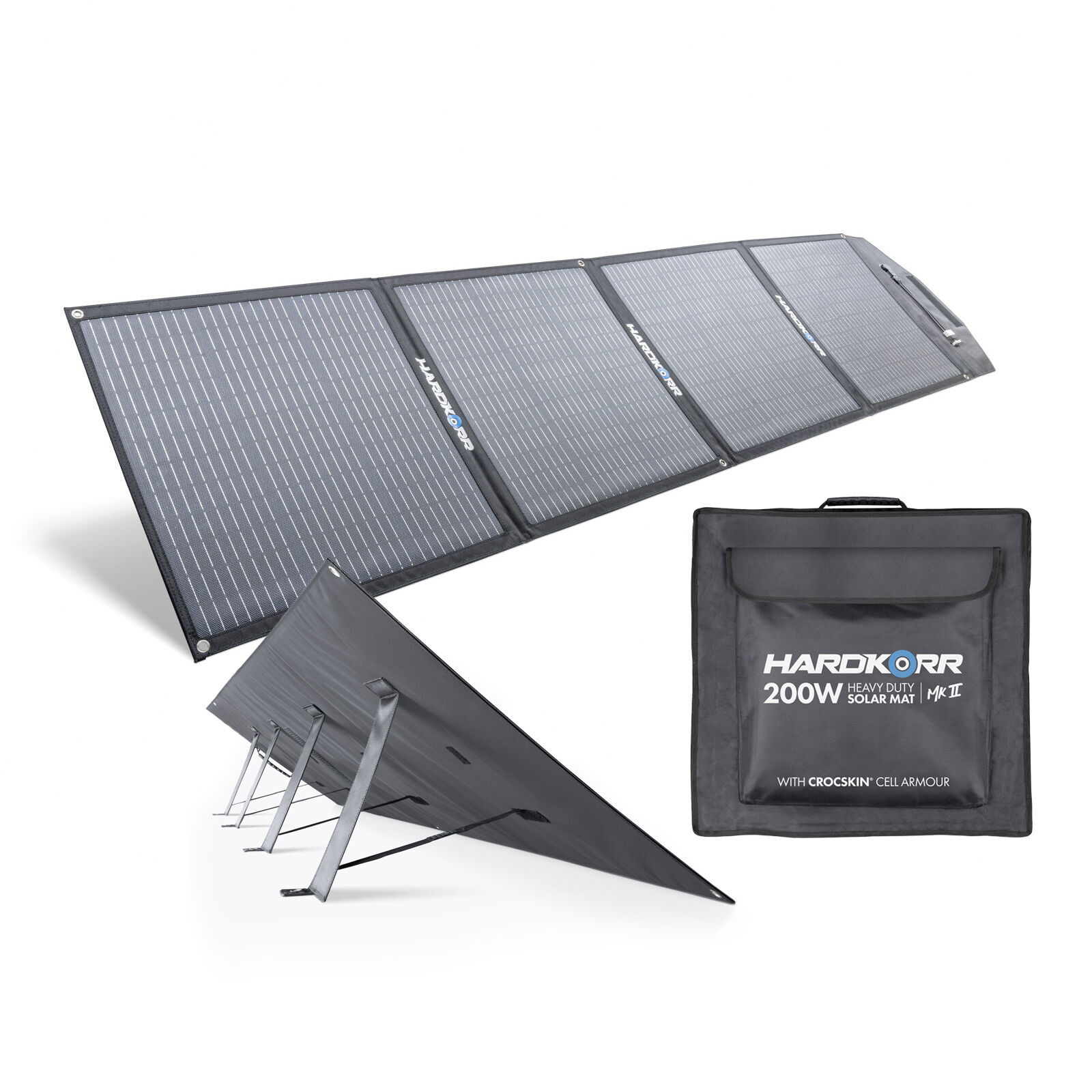

PACKAGE CONTENTS

1x 200w solar panel
1x 6m lead with Anderson plugs
1x 1.5m Anderson-style plug to battery clamp cable
4x Tie down pegs

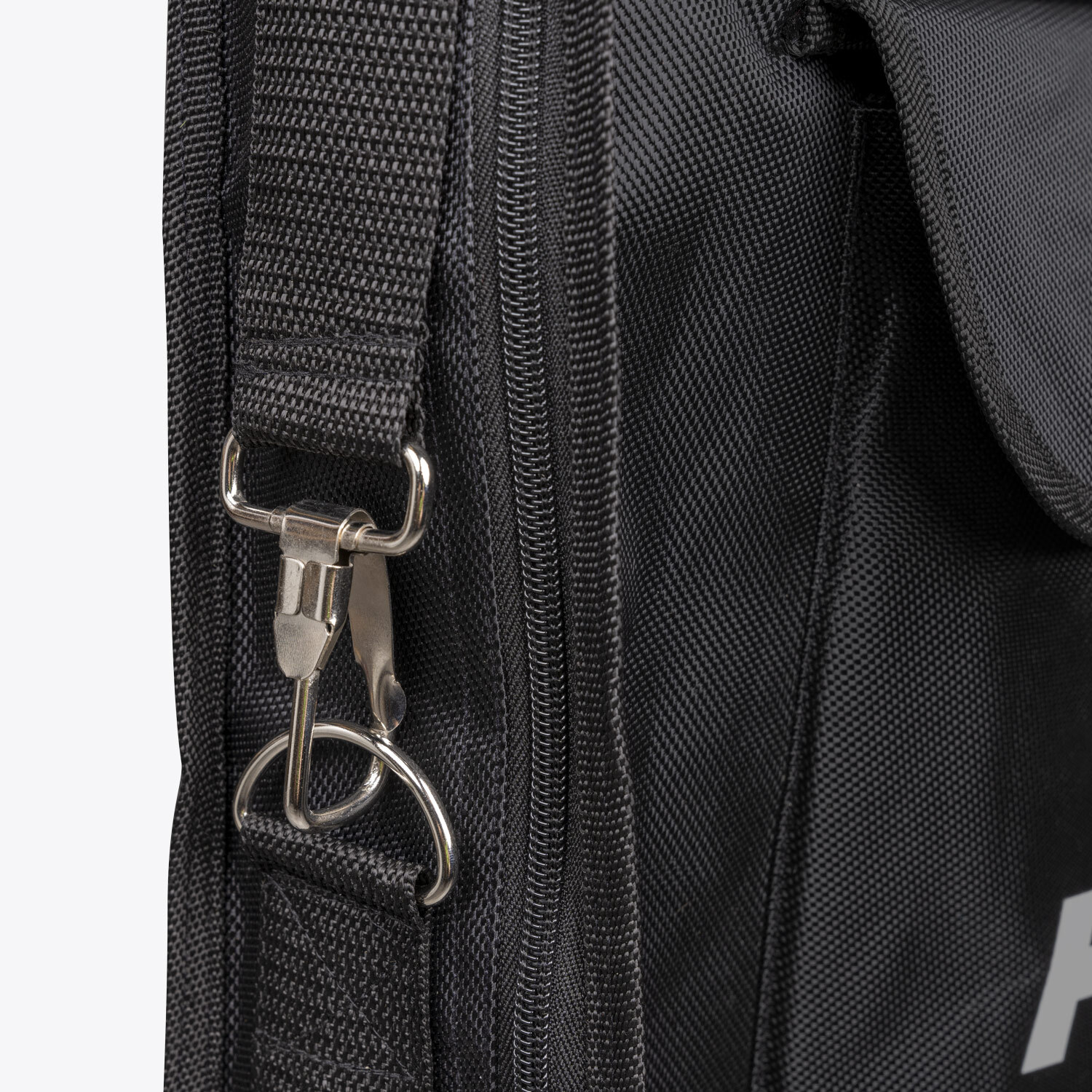

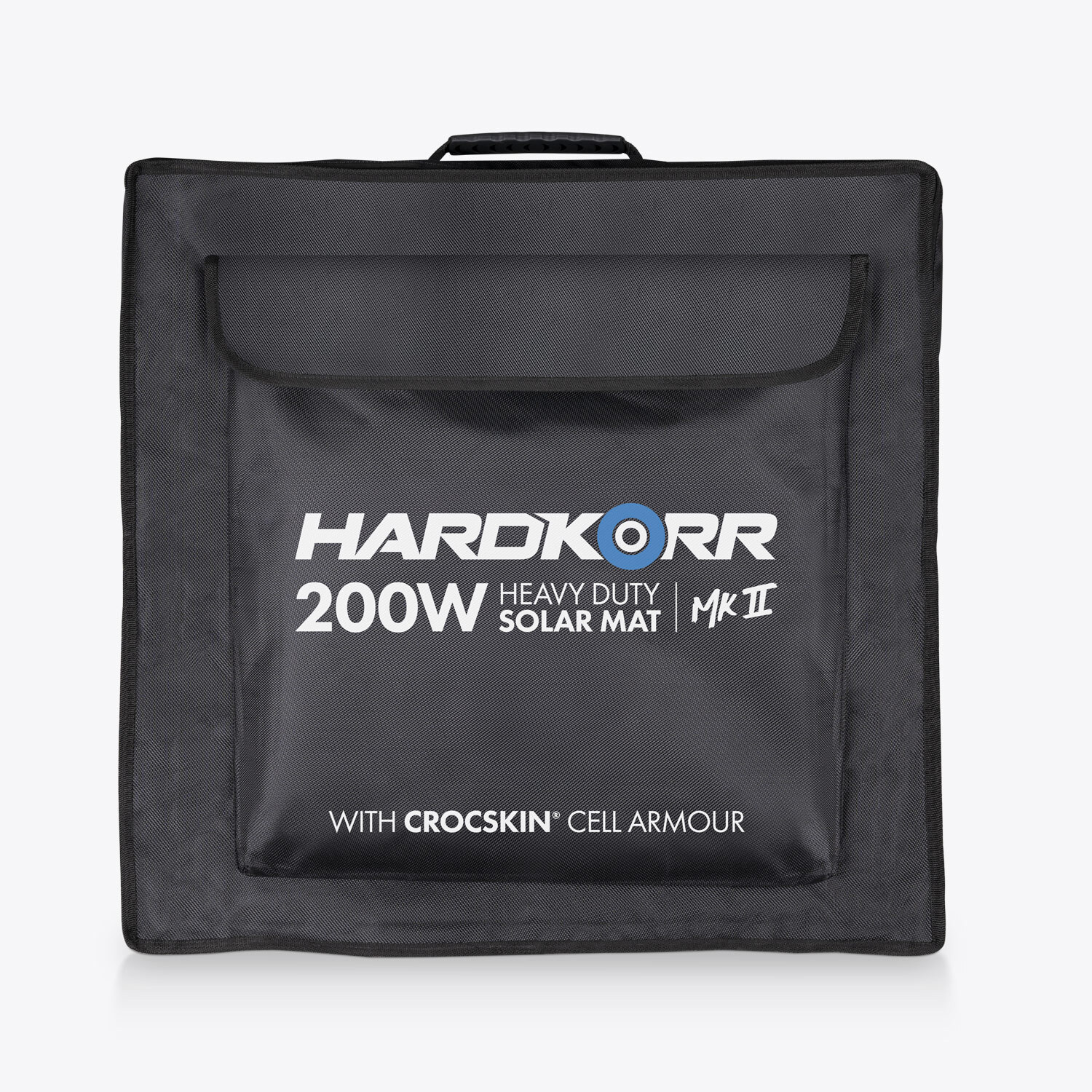

1x Protective carry bag
SKU HKP200SOLNR
Model # HKP200SOLNR
Barcode # 9350466005219
Brand Hard Korr
Shipping Weight 12.0000kg
Shipping Width 0.630m
Shipping Height 0.120m
Shipping Length 0.630m
Shipping Cubic 0.047628000m3
