Hard Korr 30A Waterproof Lithium-Compatible In-Line PWM Solar Regulator







Hardkorr’s 30A 6-stage PWM smart solar regulator is tough as nails and designed to work perfectly with our range of 12v solar panels.

This smart regulator will optimally charge a range of battery types, including AGM, Gel, Calcium, Wet and all common lithium variants including LiFePO4 and Li-ion. It contains a host of smart electronics including reverse polarity protection, short circuit protection, reverse current protection, overcharge protection and more.

Its large, backlit LCD screen provides useful information relating to power input and battery charge level, and inbuilt LEDs provide a quick-reference indicator of battery charge status.

It also contains smart re-activation technology, which gives it the ability to wake up a “dead” lithium battery where the BMS over-discharge protection circuit has been tripped. Simply connect the regulator to the battery and it will deliver special small-current pulses until the battery has recovered enough to be charged normally.

All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 2-year Australian warranty and a 30-day money back guarantee.

Key Features

  • Compatible with all common batteries: Works with AGM, Gel, Calcium, Wet and all types of lithium batteries (LiFePO4 and Li-ion).
  • Advanced algorithm: 6-stage charge program is capable of optimally charging batteries from under 5V.
  • Smart reactivation: This regulator can automatically sense where a lithium battery's BMS over-discharge protection circuit has been tripped and wake it up.
  • Electronic protections: Includes reverse polarity protection, short circuit protection, reverse current protection, overcharge protection, transient overvoltage protection and over temperature protection.
  • Shock-resistant: 100% solid state unit (no fuses, fans etc)
  • Waterproof & dustproof IP65 ingress protection rating

BATTERY TYPE

Choose from 6 different programs for optimum performance, charge level and battery longevity.

Specifications

Suitable battery types LiFePO4, Li-ion, AGM, Gel, Calcium, Wet
Rated throughput 30A
Ingress Protection IP65

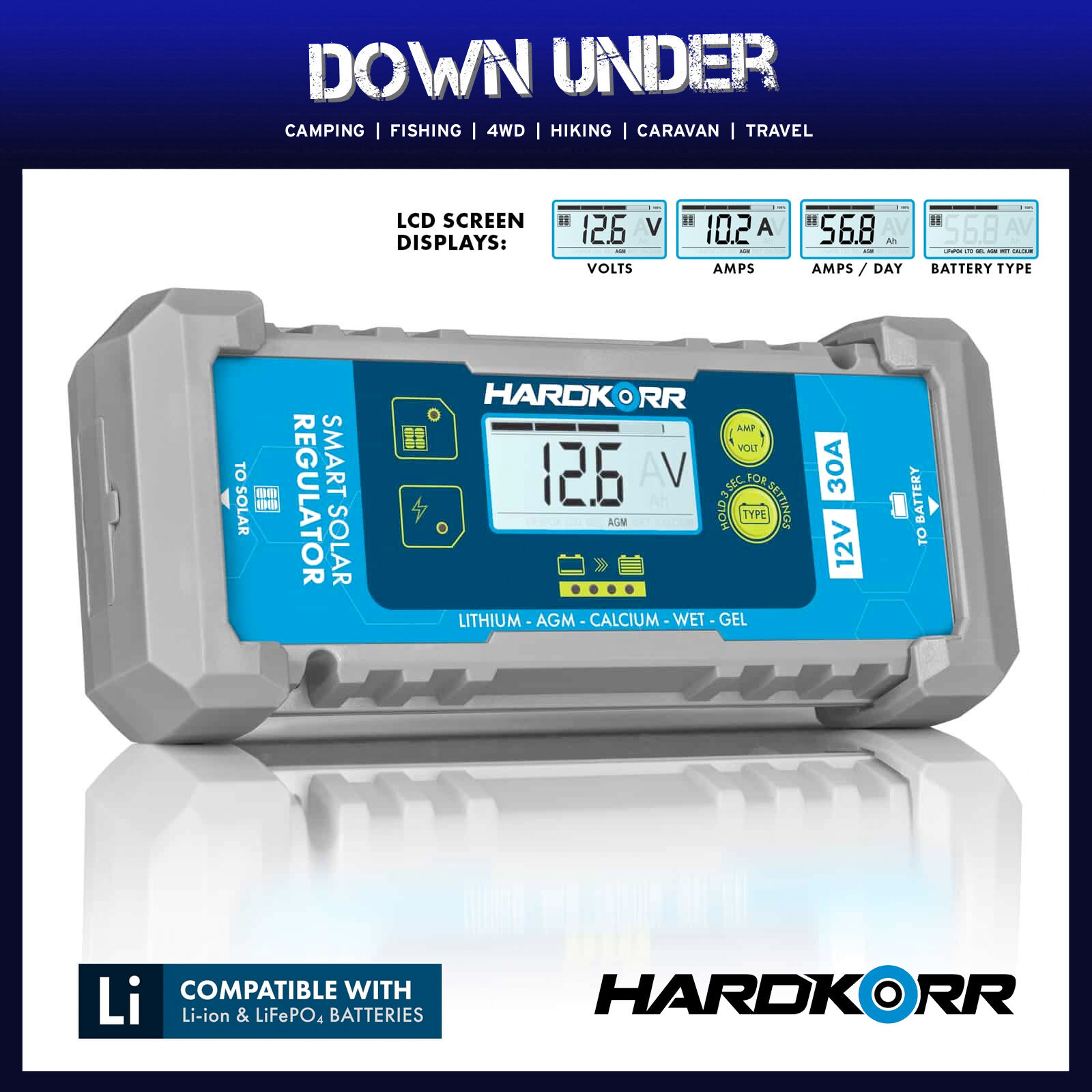

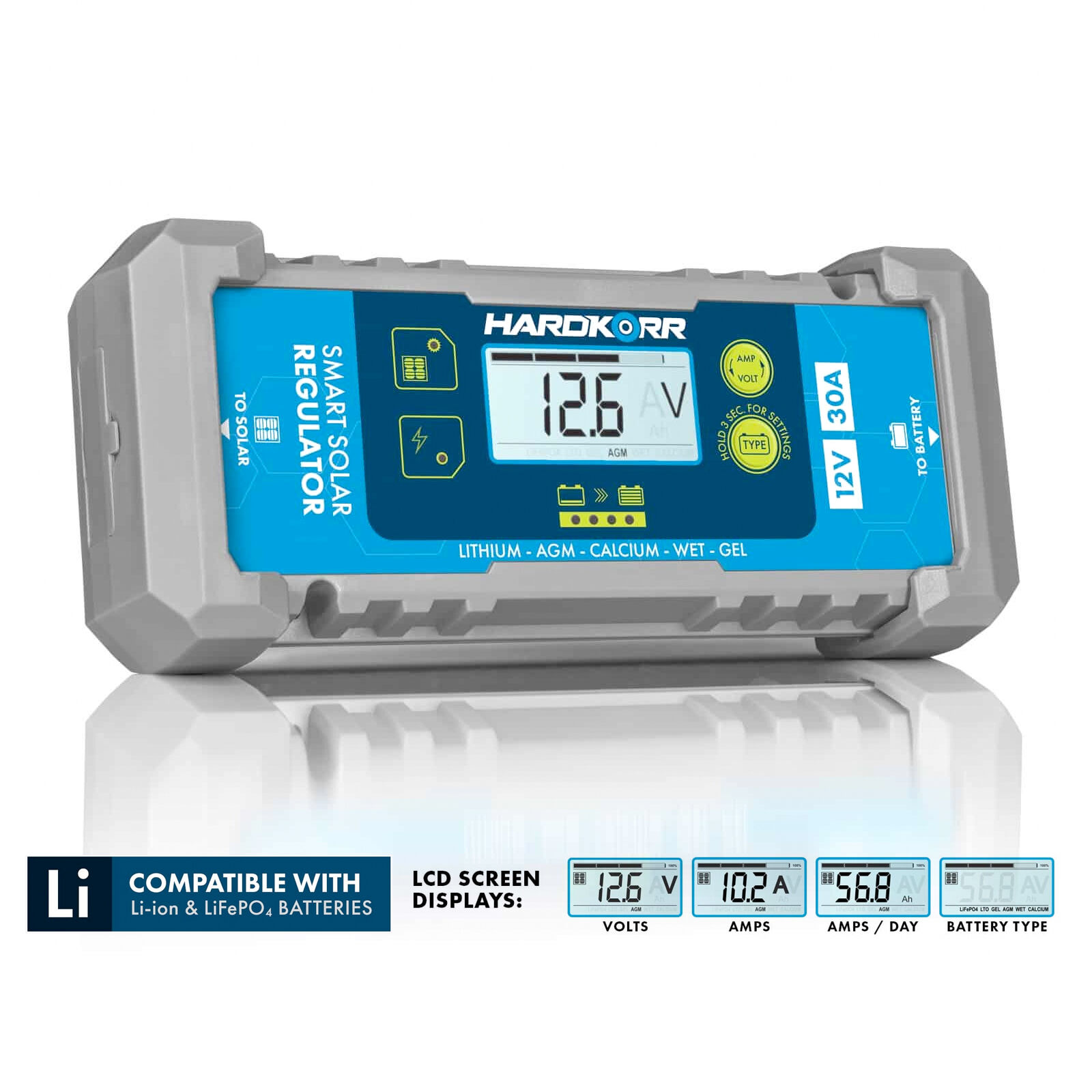

LCD screen display modes Volts, amps, amp hours, battery type
Weight 0.5kg
Self-consumption <3mA
Operating temperature -40°C to 60°C
Storage temperature -40°C to 85°C

Pack Contents

1x 30A 6-stage smart solar regulator

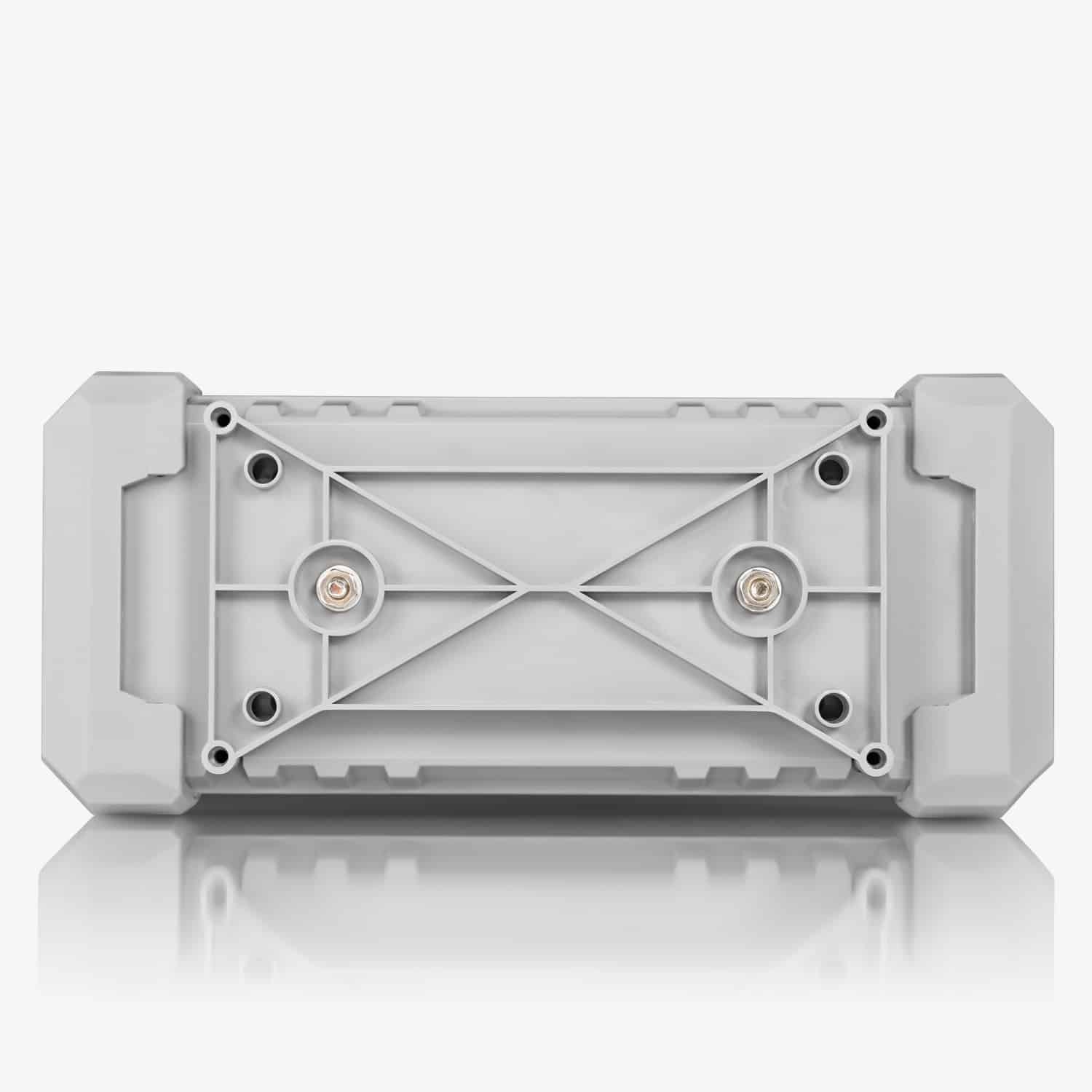

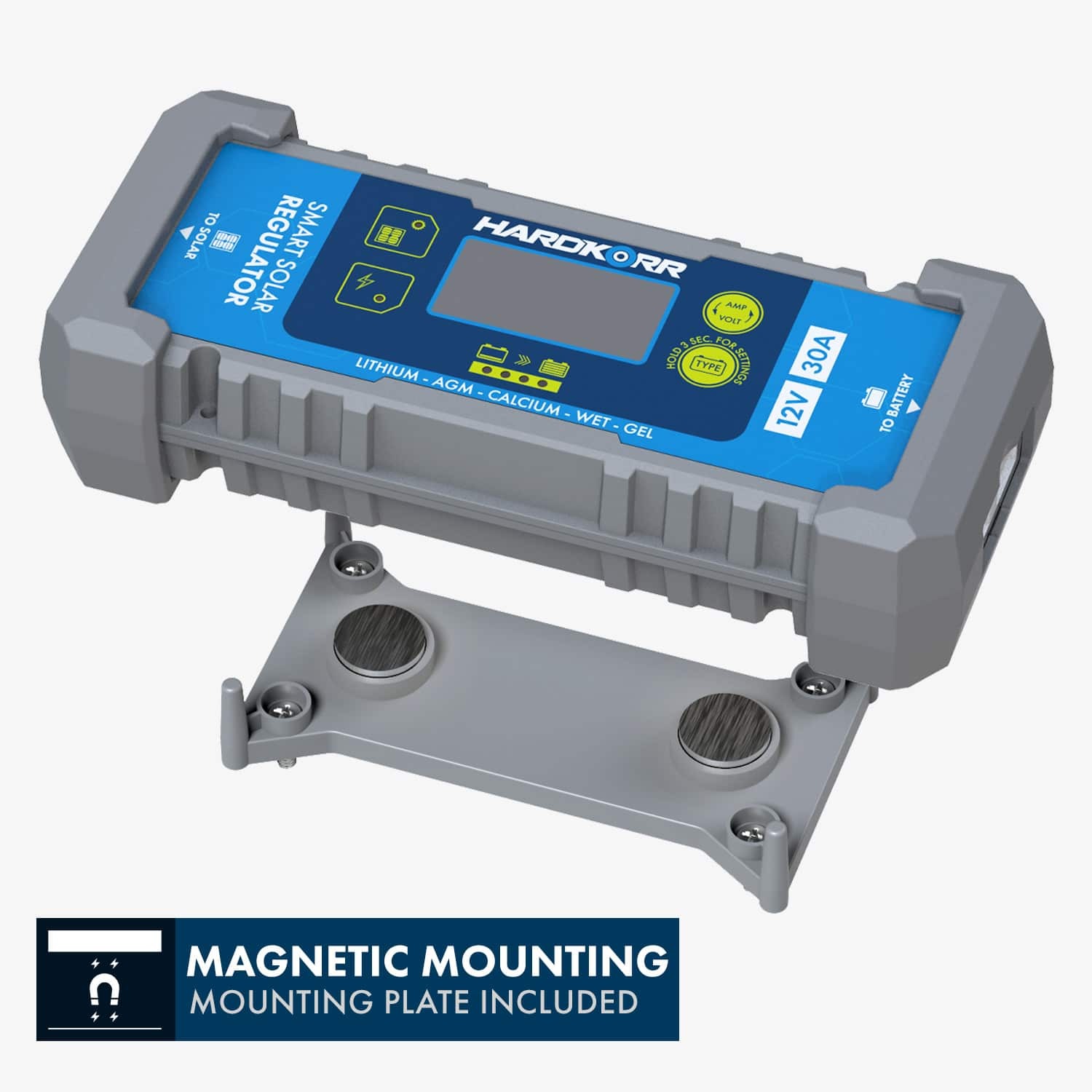

1x Magnetic mounting plate & screws
SKU HKPSOLRIN30A
Model # HKPSOLRIN30A
Barcode # 9350466003062
Brand Hard Korr
Shipping Weight 0.5000kg
Shipping Width 0.255m
Shipping Height 0.255m
Shipping Length 0.060m
Shipping Cubic 0.003901500m3
