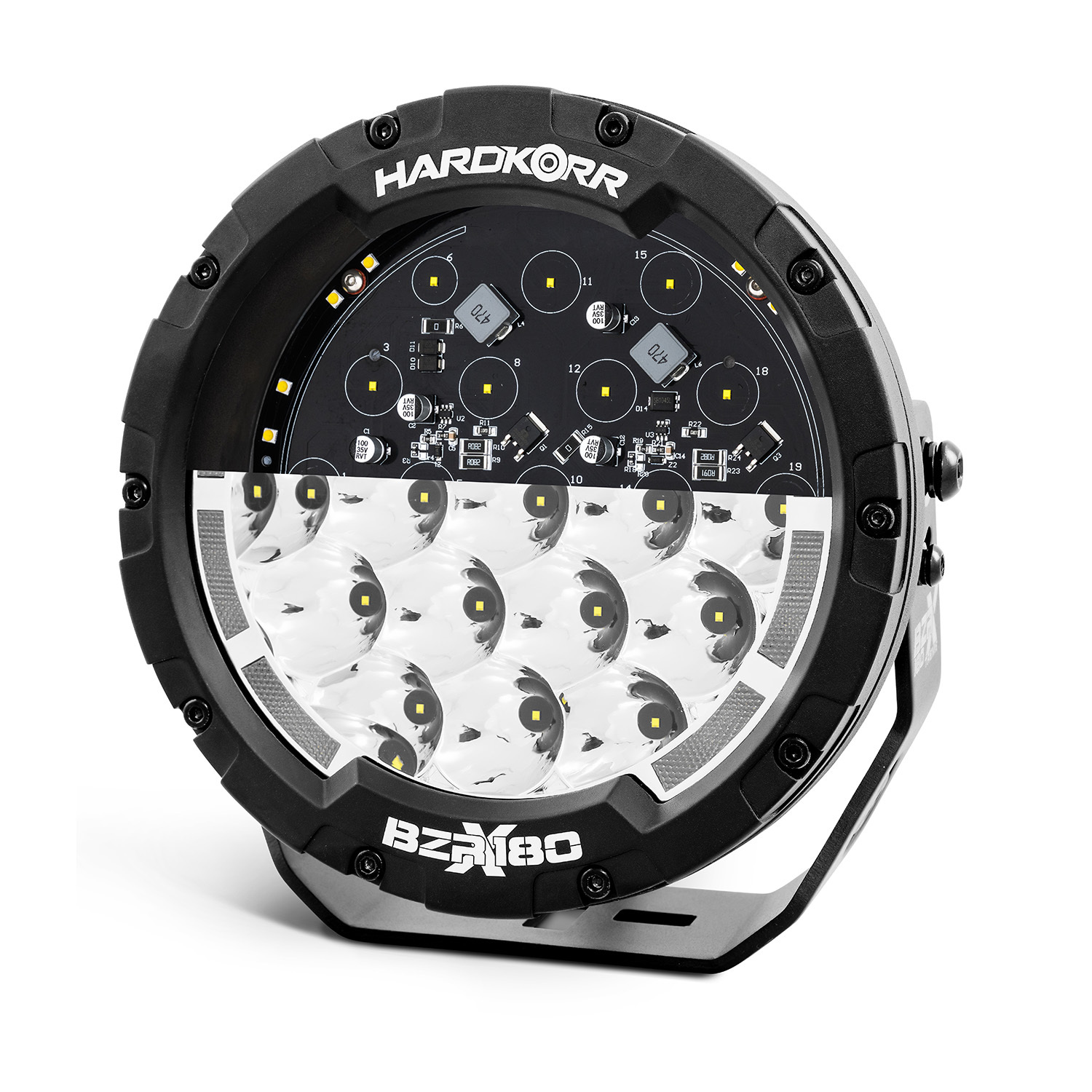

Hard Korr BZR-X Series 7" LED Driving Light (Single)



BZR-X Series 7"
LED Driving Light (Single)

Hardkorr’s flagship BZR-X Series 7″ LED driving lights produce a wide, even combination beam with a market-leading 1 lux @ 1,150m forward distance. Their ultra-slim design means they are particularly suited to vehicles with narrow mounting surfaces such as modern factory bullbars.









MARKET-LEADING

Distance and spread

With our exclusively crafted lens reflectors, you can enjoy an impeccable spread and reach that guarantee a clear and uninterrupted field of view devoid of any dark spots.









Our bestselling lights, now available in singles.

As a result of customer feedback, we now offer our bestselling BZR-X Series LED Driving Lights in singles as well as pairs. Primarily this allows customers to run three-light setups on their bull bars, which is an increasingly popular choice among the 4wding community.

The Hard Korr BZR-X Series driving lights are hands down the best driving lights we’ve ever created. In fact, we think they’re the best driving light anyone has ever created. Big call? Maybe, but we don’t think it’s a wrong one!

We’ve started with the best LED chips currently available on the market, from Lumileds. Forget the old argument between OSRAM and CREE, Lumileds LEDs are starting to appear in more and more high-end driving lights, and for good reason. They are incredibly bright, much more than anything else we’ve ever come across, and very efficient as well.

Why does this matter? Good question. Using LED chips with such high brightness means that our reflector engineers have been able to achieve the “holy grail” of driving lights: a true combination beam, as good as you’ll find in a light bar, without sacrificing forward distance.

They’re also CISPR15 compliant, meaning they have been independently tested to ensure they do not interfere with radio frequencies.

Combined with a tough, understated look, integrated daytime running lights (DRL) and strong 4mm 316 stainless steel brackets, they are the ultimate driving lights for keen adventurers, professional drivers and those who spend a lot of time on country roads.



Our BZR-X LED driving lights now come with a unique dynamic DRL start-up sequence.

Now when you turn your vehicle's engine on, your daytime running lights will illuminate progressively rather than all coming on at once.

Whilst it (obviously) doesn't enhance the performance of your lights at all, we thought it would be a bit of fun to create and produce a nice effect on the front of your rig!

All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 3-year Australian warranty and a 30-day money back guarantee.

Adaptor cable included.

We introduced the single BZR-X lights primarily to allow people to run three driving lights on the front of their rig. To help make the job of wiring all the lights as easy as possible, we include a 2-into-1 adaptor cable with all single lights. This means you can use the same wiring harness that comes with the pair, and simply connect the adaptor cable to one of the Deutsch plugs on the end of the harness to make all three lights work together.

Genuine parts, precision optics.

Hardkorr’s BZR-X series driving lights are made using genuine top-grade Lumileds® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.

This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world’s most trusted manufacturer of LED lighting.

Specifications

Materials ADC12 aluminium housing with AkzoNobel® powder coating 4mm 316 s/steel bracket with AkzoNobel® powder coating UV-coated Lexan® polycarbonate lens
Dimensions 175mm (w) x 190mm (h) x 75mm (d) incl. bracket
LED Manufacturer Genuine Lumileds®
LED Number (each) 19 x 5w
Lux (pair) 1 lux @ 1,150m
Output (pair) 22,588 effective lumens
Beam Combination
Ingress Protection IP68
EMC rating CISPR 15 Class 3
Impact rating IK08 (5J)
Vibration rating IEC 60068-2-6 & ISO16750-1 (15G R.M.S. @ 24-2000Hz)
Weight (each) 1.9kg
Operating Voltage 10 - 30v DC
Current (each) 7.7A @ 12V / 3.75A @ 24V
Colour Temp 6000K
LED Lifespan 50,000+ hours
Certifications CE, RoHS, RCM

Pack Contents

1x 95w LED driving light
1x 316 stainless steel mounting bracket
1x set security bolts & anti-vibration rubber base
1x 2-into-1 Deutsch adaptor cable





SKU HKBZRX180-S
Model # HKBZRX180-S
Barcode # 9350466002065
Brand Hard Korr
Shipping Weight 2.6700kg
Shipping Width 0.095m
Shipping Height 0.300m
Shipping Length 0.250m
Shipping Cubic 0.007125000m3
