Hard Korr Heavy Duty Battery Box PRO



Heavy Duty Battery Box PRO

Whether you’re camping in the sticks or weathering the summer storms, the Hardkorr Heavy Duty Battery Box allows you to quickly and easily create a portable 12V power station when paired with a compatible battery.









Hassle free wireless power

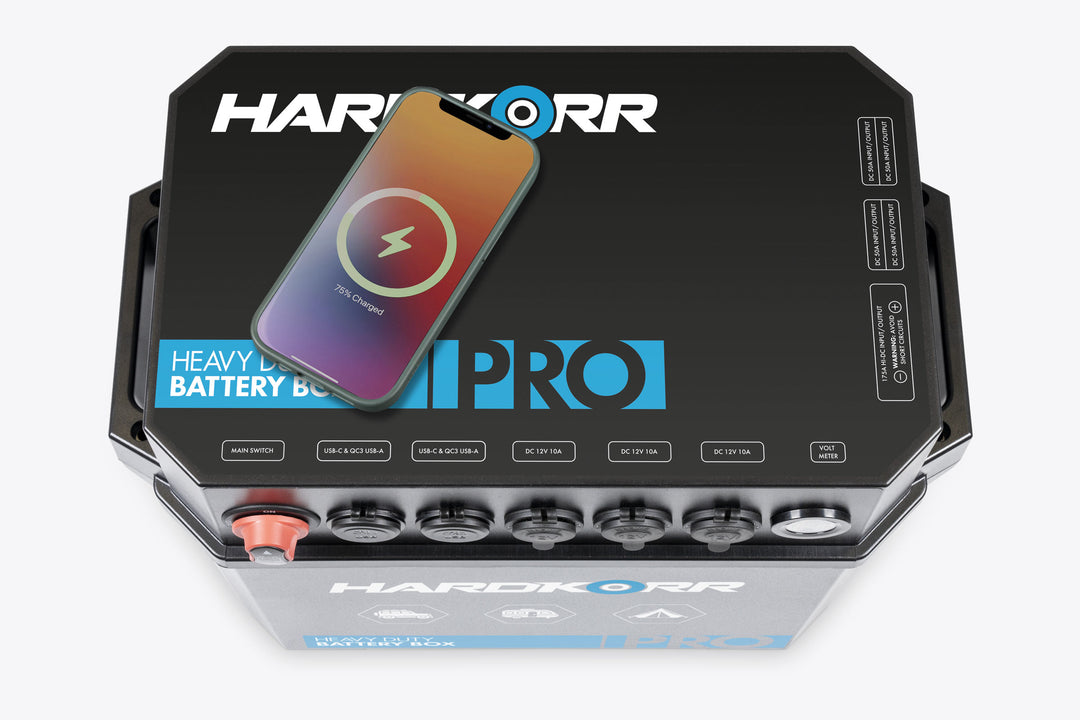

Wireless phone charger

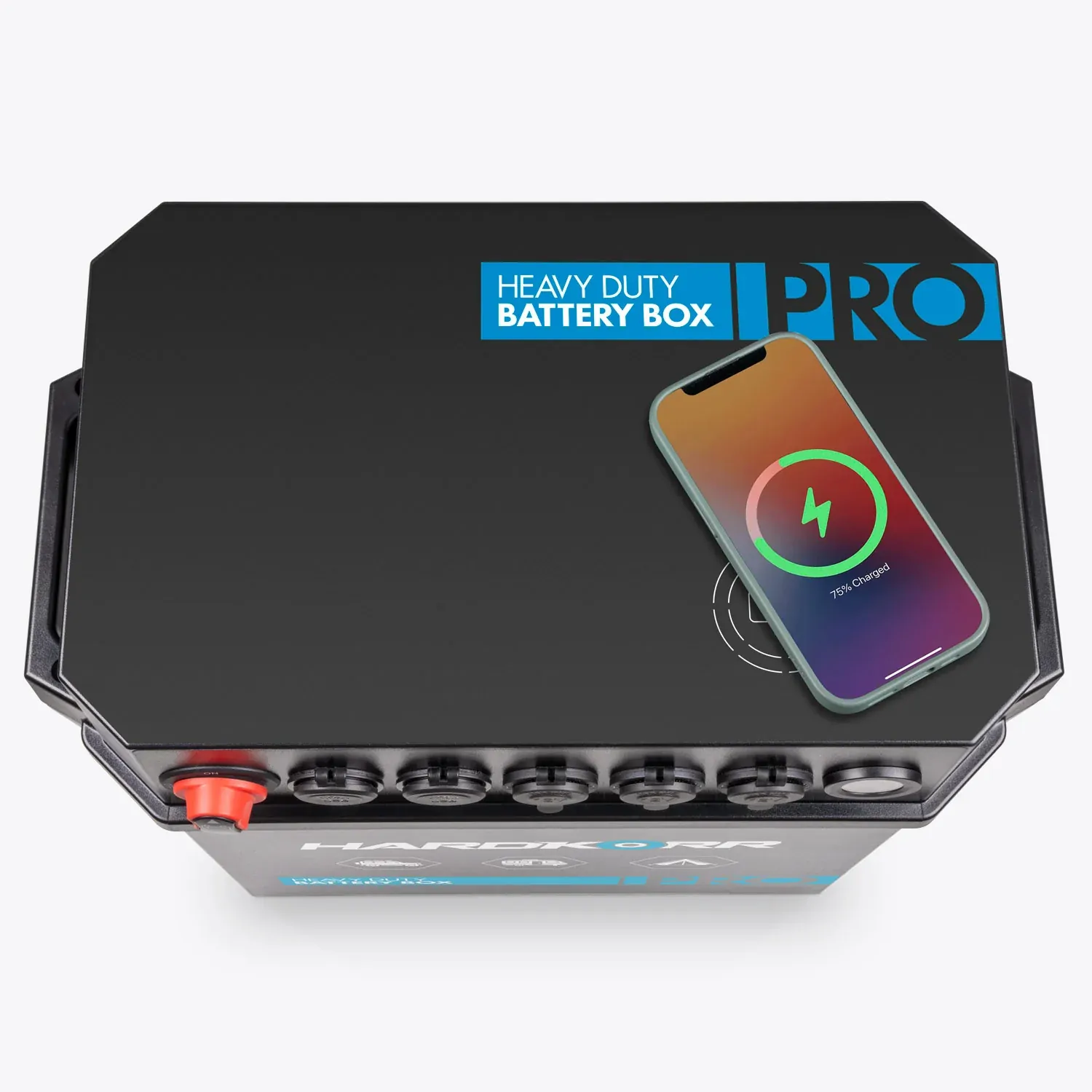

Charge your phone or compatible accessories. Just place your device on the designed charging surface for instant power.





CREATE YOUR OWN PORTABLE POWER STATION

The Heavy Duty Battery Box Pro model gives you more ways to utilise your auxiliary battery power. It comes with an integrated wireless charger, and a wide array of ports, plugs and sockets to give you the power you need, however you need it.

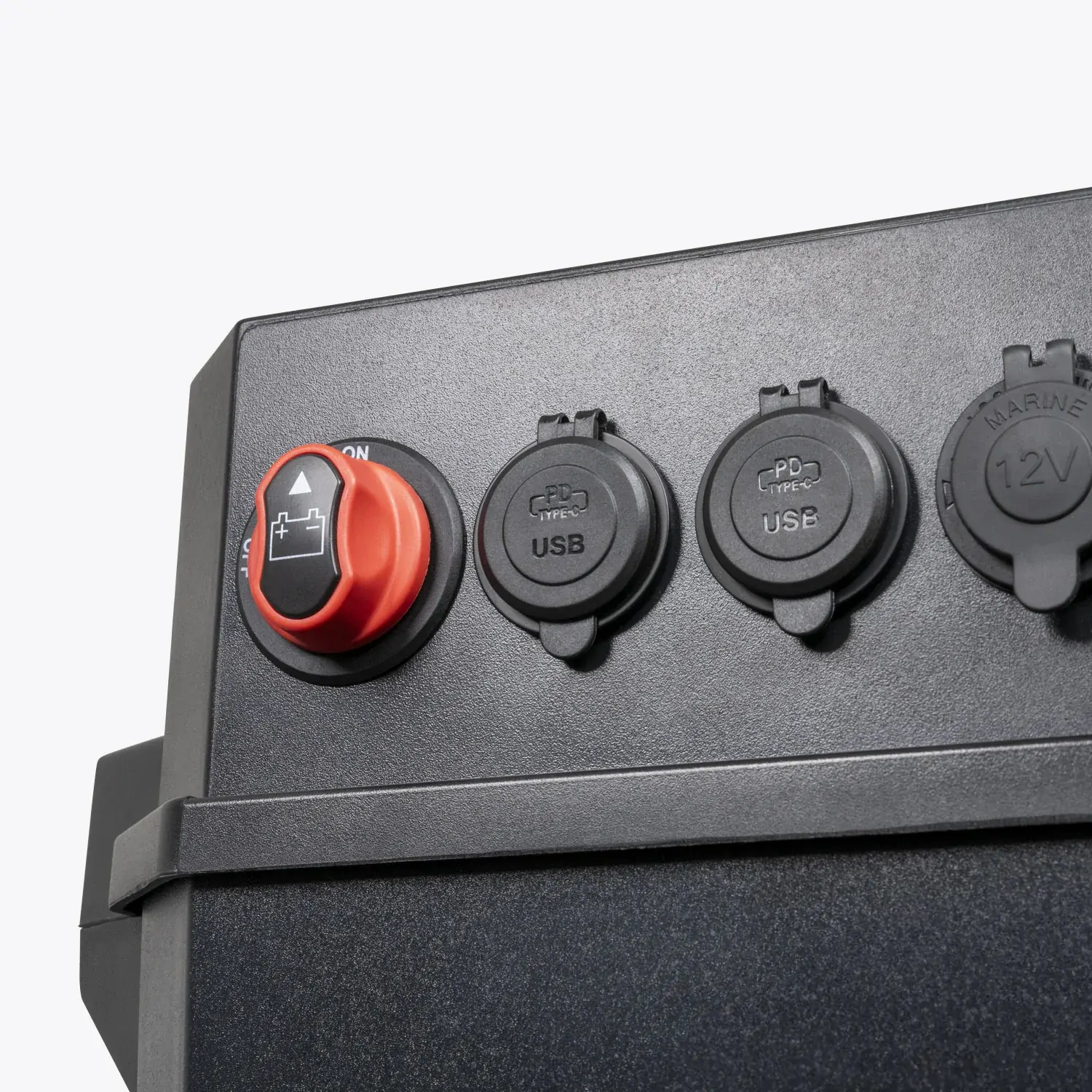

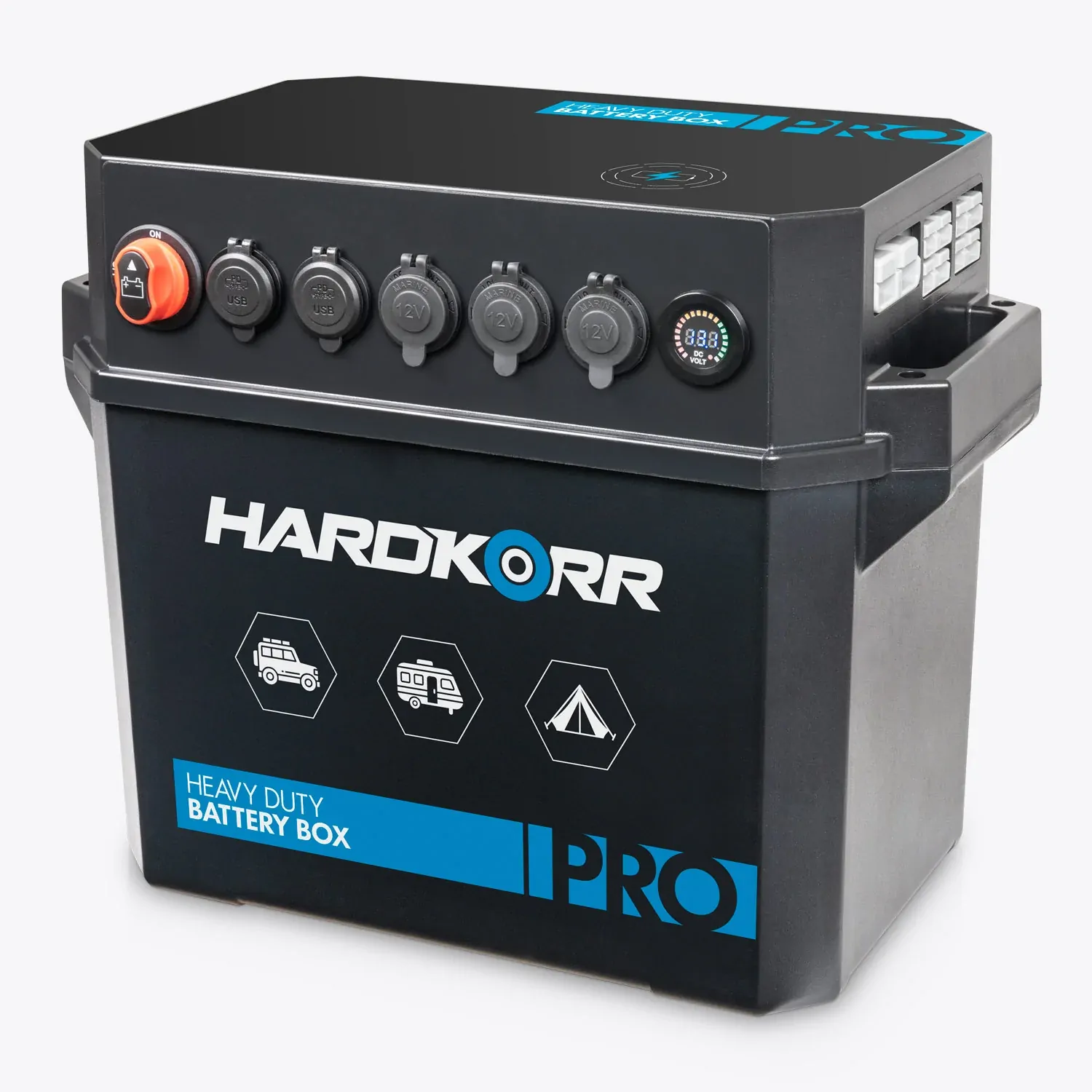

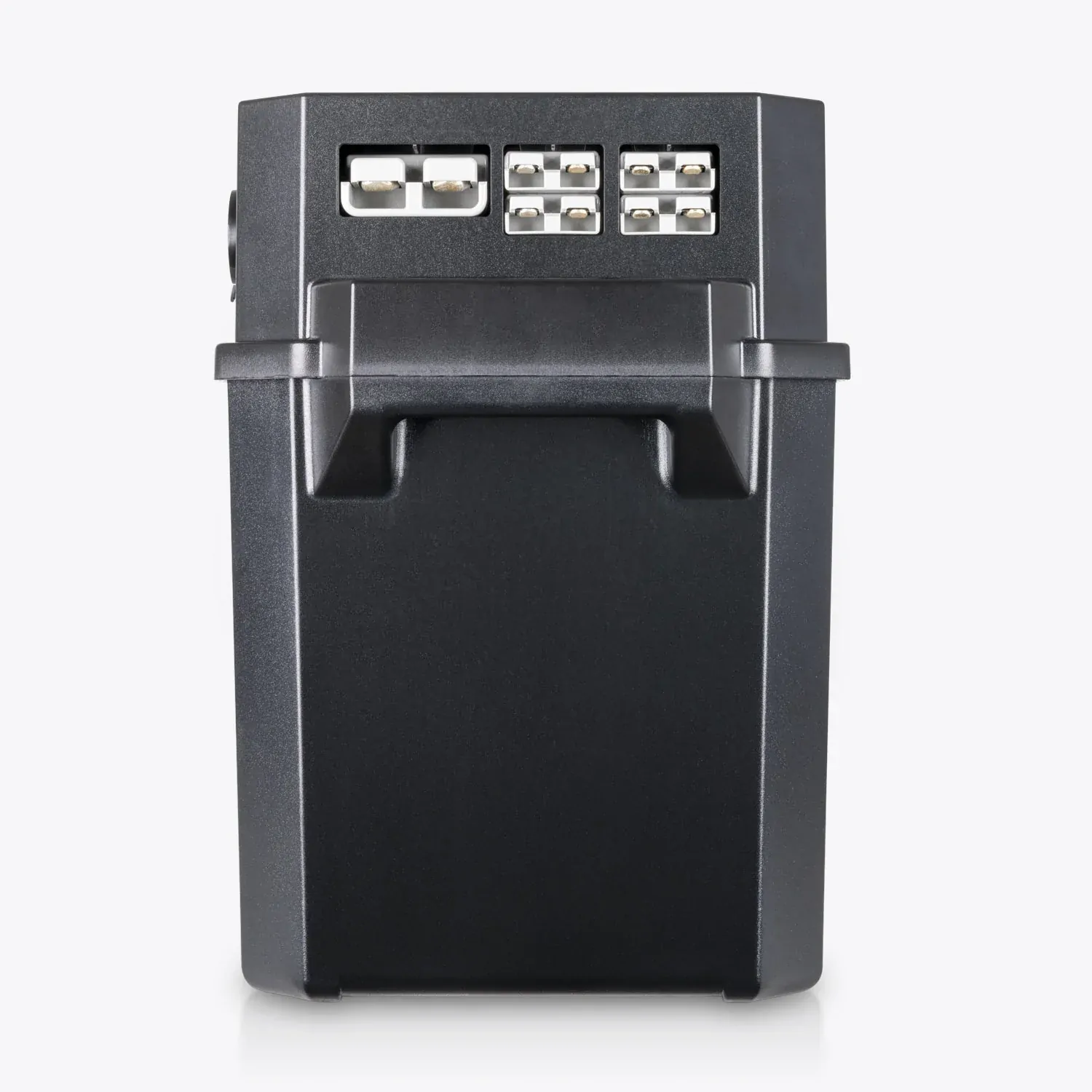

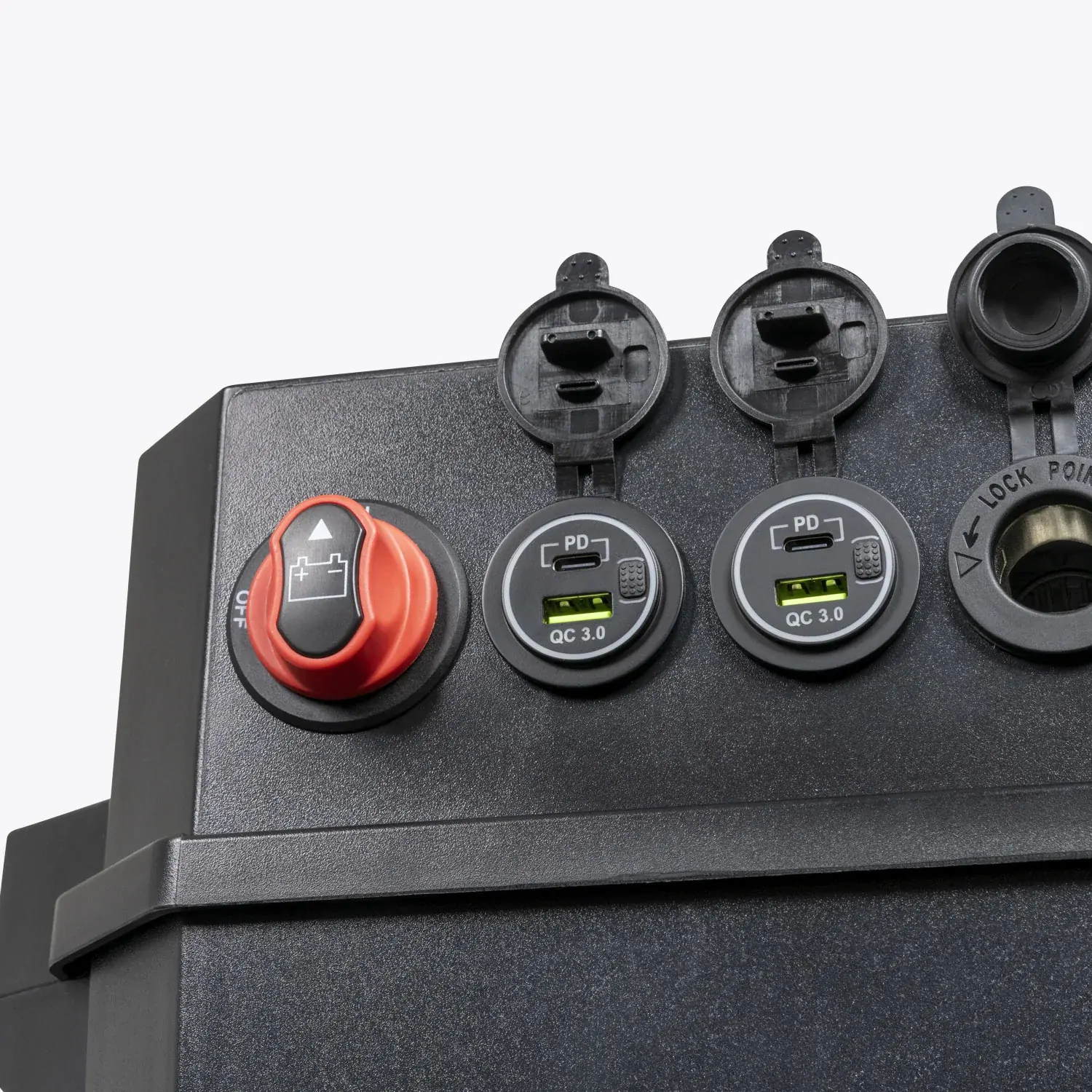

The battery box can accommodate batteries of all chemistries up to 330mm x 180mm x 240mm in size. It's durable ABS construction is built to last and all ports are recessed to reduce the risk of breakage. You'll find three 12V lighter sockets with 10A fuses, two dual USB-C and Quick Charge USB-A ports, four 50A Anderson style plugs, a 175A Anderson-style plug for jump-starting, and a three coil wireless charging pad.

All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 2-year Australian warranty and a 30-day money back guarantee.

KEY FEATURES

  • Constructed from UL 94V-0 compliant fire-resistant ABS plastic
  • Multiple port types allows you to connect a range of devices
  • Easily connect a DC/DC charger or solar panel to charge the battery, or use the optional 50A Voltage-Sensitive Relay (VSR) and Dual Battery Wiring Kit to charge directly from crank battery
  • Can be used to jump start vehicles using our optional 175A Anderson jumper cable set
  • All ports are recessed into the body to reduce likelihood of damage
  • Wirelss charging pad (max. 15W

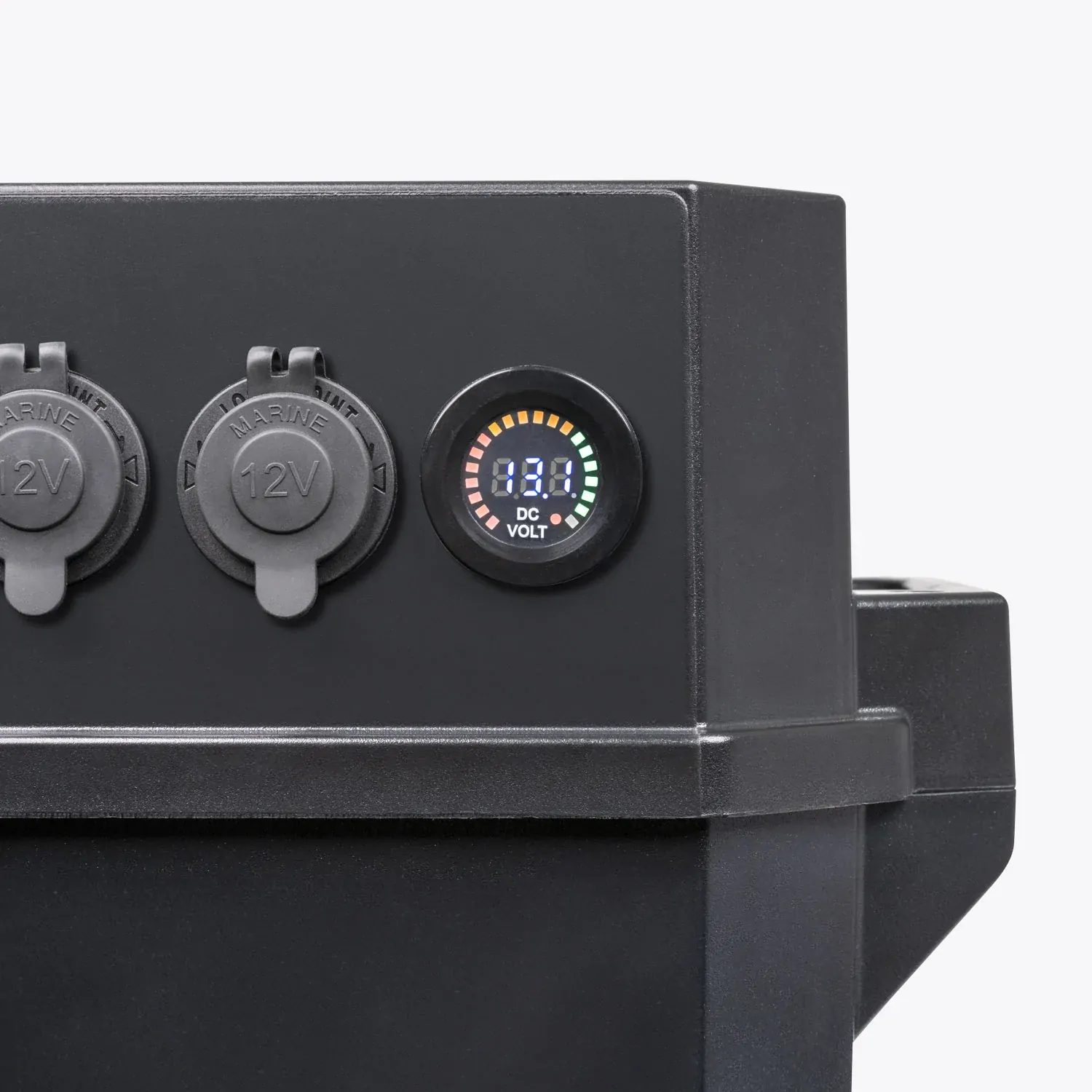

  • Easily see battery status with digital display

EASY DUAL BATTERY SETUP

For a dual battery setup, simply connect your primary power source to one of the 50A Anderson-style plugs, and the auxiliary battery's charge status and voltage will appear on the digital display. Having extra power on your next trip couldn't be easier.

Whether you’re camping in the sticks or weathering the summer storms, the Hardkorr Heavy Duty Battery Box allows you to quickly and easily create a portable 12V power station when paired with a compatible battery.

With its compact size and wide range of electrical connections available, there’s practically nothing you can throw at this box that it won’t accommodate. If you experience a black out and the fridge is starting to thaw, the Battery Box provides a simple and safe way to get your camp fridge powered up.

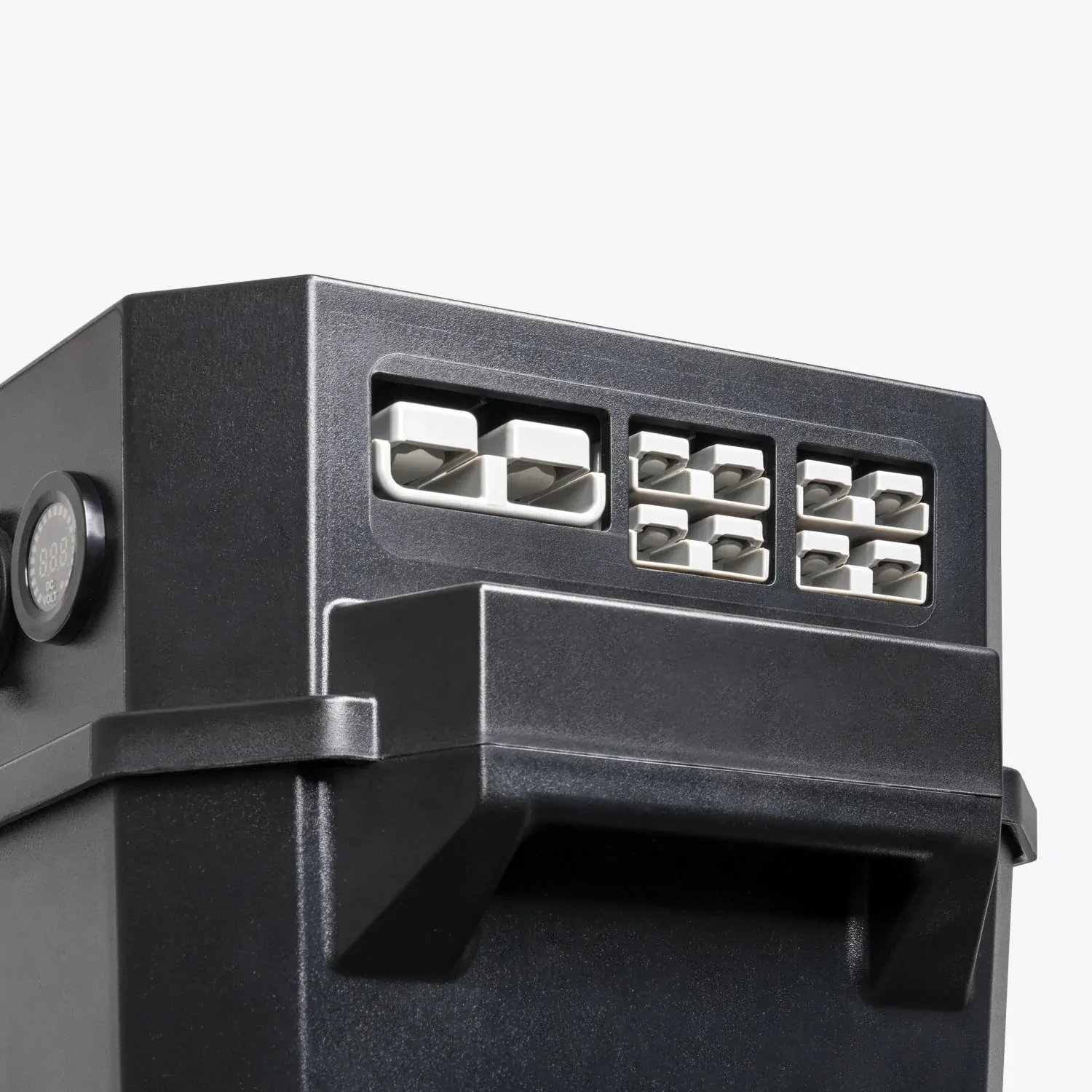

Need a jump-start? The 175A Anderson-style plug has you covered for connecting a pair of jumper leads for your vehicle’s main battery. When it’s time to recharge, the 50A Anderson-style plugs give you a direct interface for charging with your solar panels.

Specifications

Materials ABS plastic (UL 94V-0 compliant)
Box dimensions 420mm (l) x 240mm (w) x 340mm (h)
Max. battery dimensions 330mm (l) x 180mm (w) x 240mm (h)
Max. battery weight 35.0kg
Suitable battery types Any deep cycle (Lithium, AGM, Calcium, Wet, Gel)
Charge method via Anderson plug input or optional VSR
Ports In/Out 2x USB-C
2x Quick-charge USB
3x Cigarette sockets
4x 50A Anderson-style
1x 175A Anderdson-style
1x Wireless charging pad (max. 15W)
Ingress Protection IP64 dustproof & waterproof

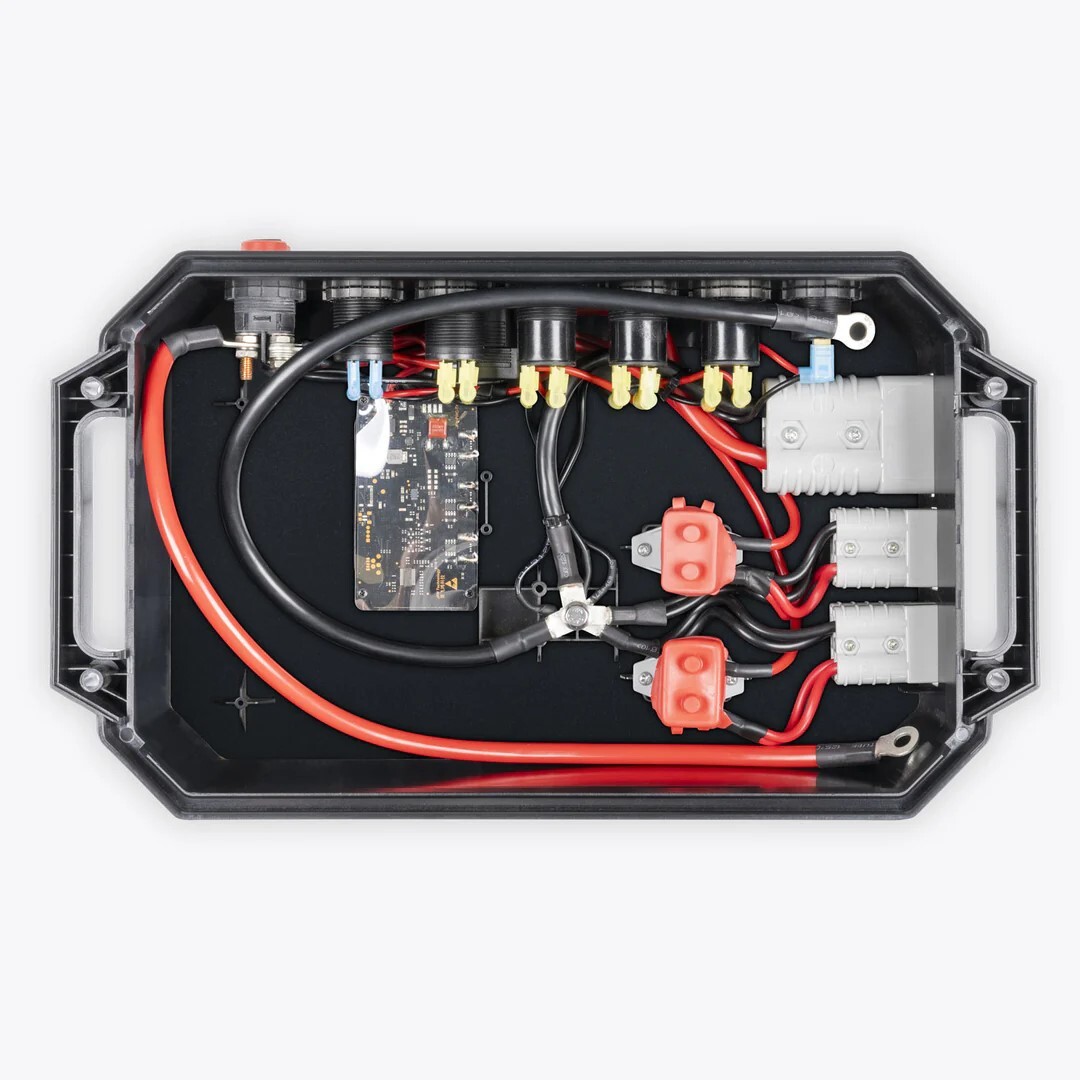

Cable gauge 2AWG (35mm2) to battery and 175A Anderson port 8AWG (10mm2) to 50A Anderson ports 14AWG (2.5mm2) to cig & USB ports
Operating temperature -10°C to 60°C
Weight 3.9kg



PACKAGE CONTENTS

1x Heavy duty battery box
1x set bolts, brackets & Allen keys
1x Strap
SKU HKPCHGBOX
Model # HKPCHGBOX
Barcode # 9350466005240
Brand Hard Korr
Shipping Weight 5.6000kg
Shipping Width 0.300m
Shipping Height 0.430m
Shipping Length 0.450m
Shipping Cubic 0.058050000m3
