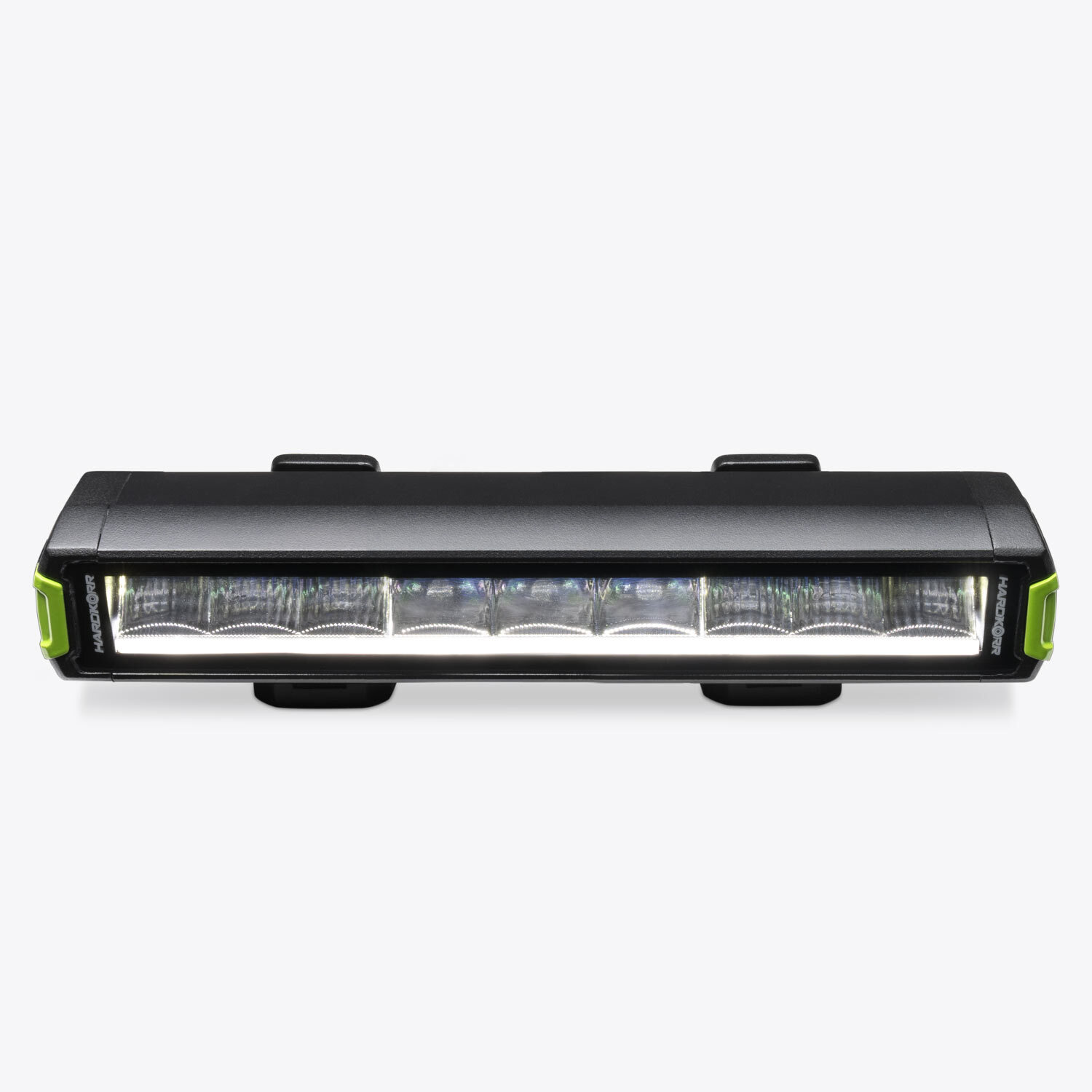

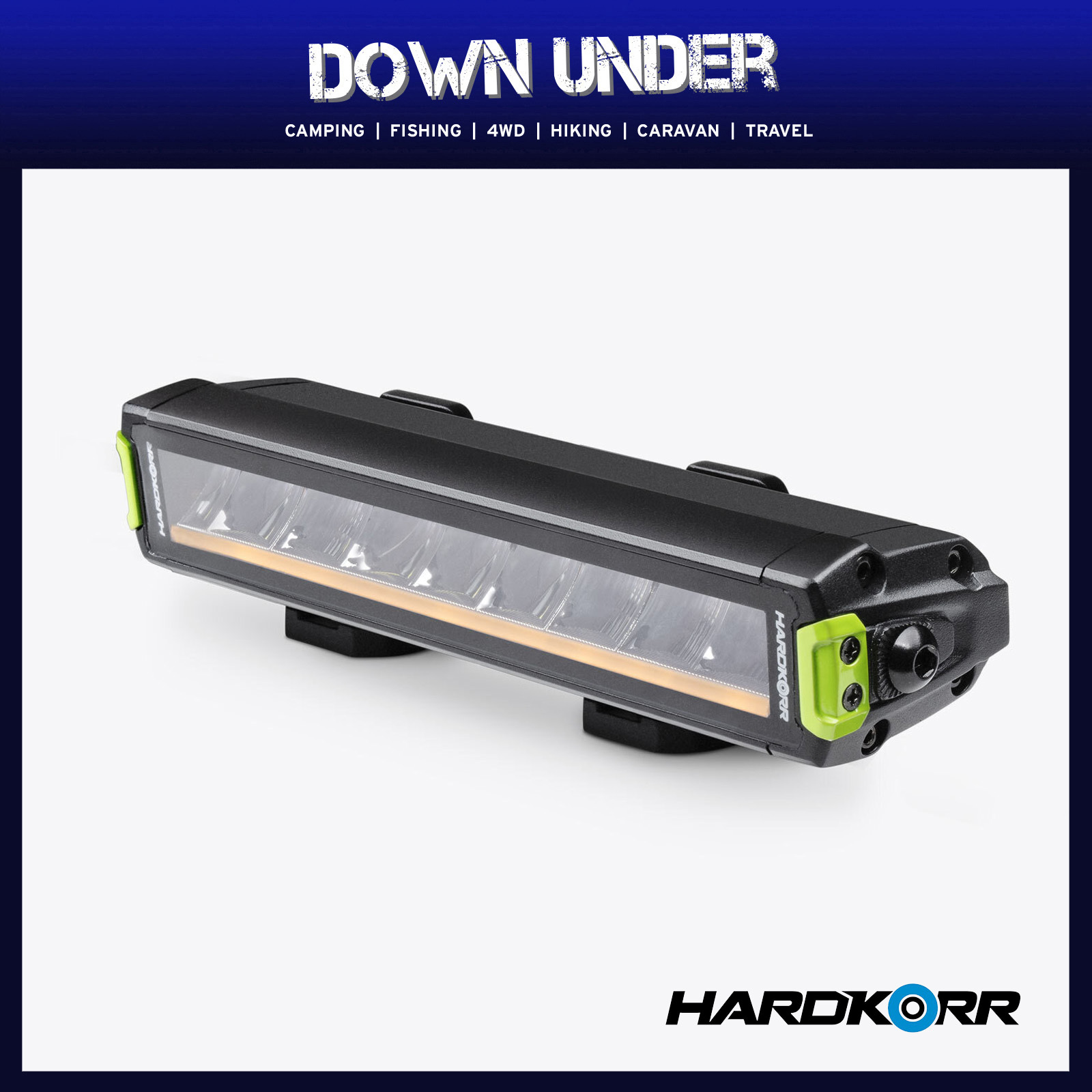

Hard Korr Hyperion Series LED Light Bar 10" Single Row - Wiring Harness Included
SKU code: HKLB-HPR-10S
Hard Korr Hyperion Series LED Light Bar 10" Single Row - Wiring Harness Included
HYPERFLOOD BEAM PATTERN
Turn night into day
Don't let darkness take the wheel. See hazards farther, react faster with Hyperion light bars. Ultra-wide beams illuminate your path, revealing dangers before they become threats. Drive with confidence, day or night. Upgrade your ride, upgrade your safety.
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 5-year Australian warranty and a 30-day money back guarantee.
Extremely customisable
Make it yours

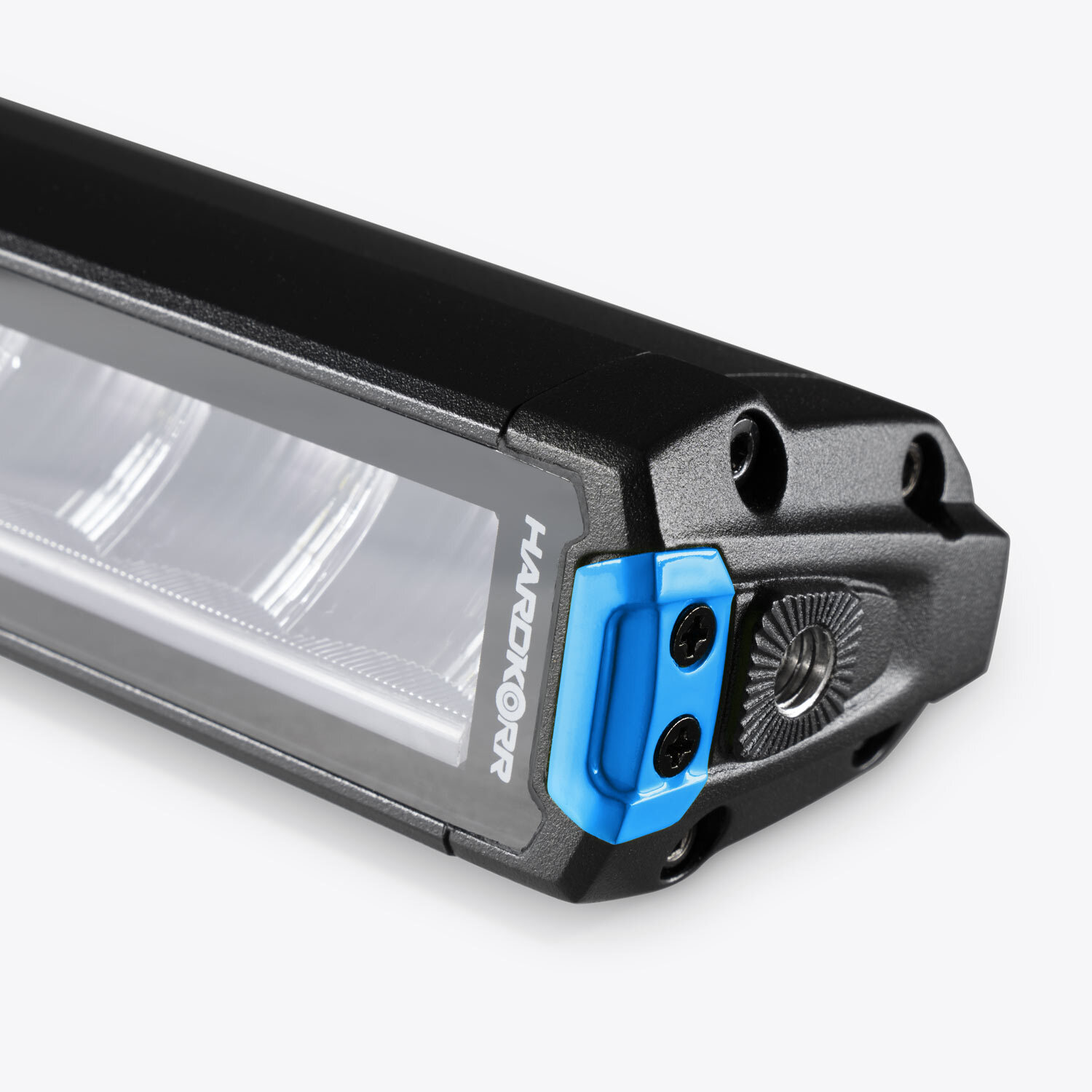

Finally, we’ve made sure there is plenty of customisability so you have the freedom to match this light bar to your vehicle and application. We’ve included three pairs of different coloured side inserts in the pack, and have another seven colour options available for separate purchase*.

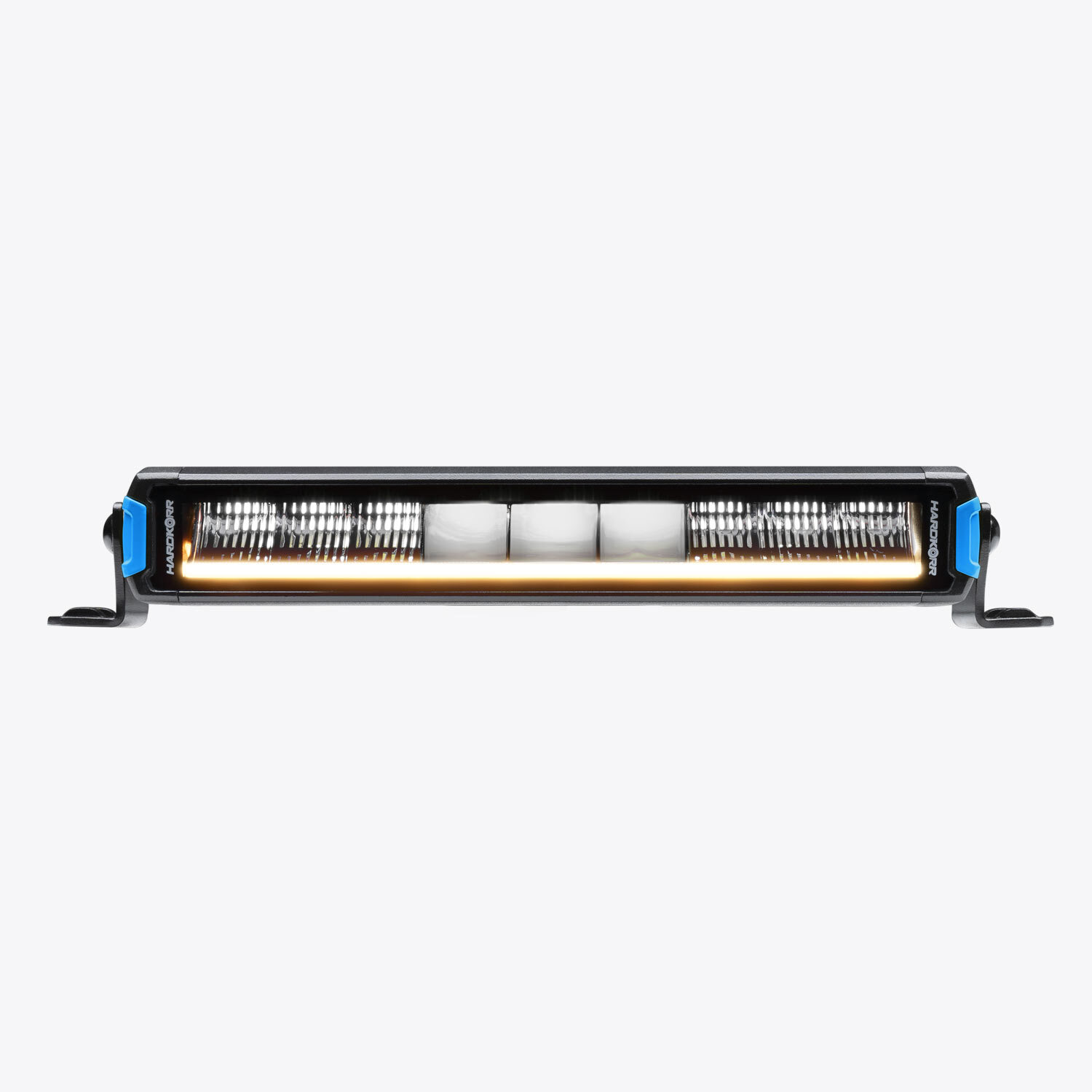

Additionally, each light bar can be switched between high and low modes, and you can also switch between orange and white daytime running lights (DRLs). For further protection and customisation, we also offer black, orange and clear covers for purchase.
* Colour inserts are sold separately
As thin as possible
Intelligent Design

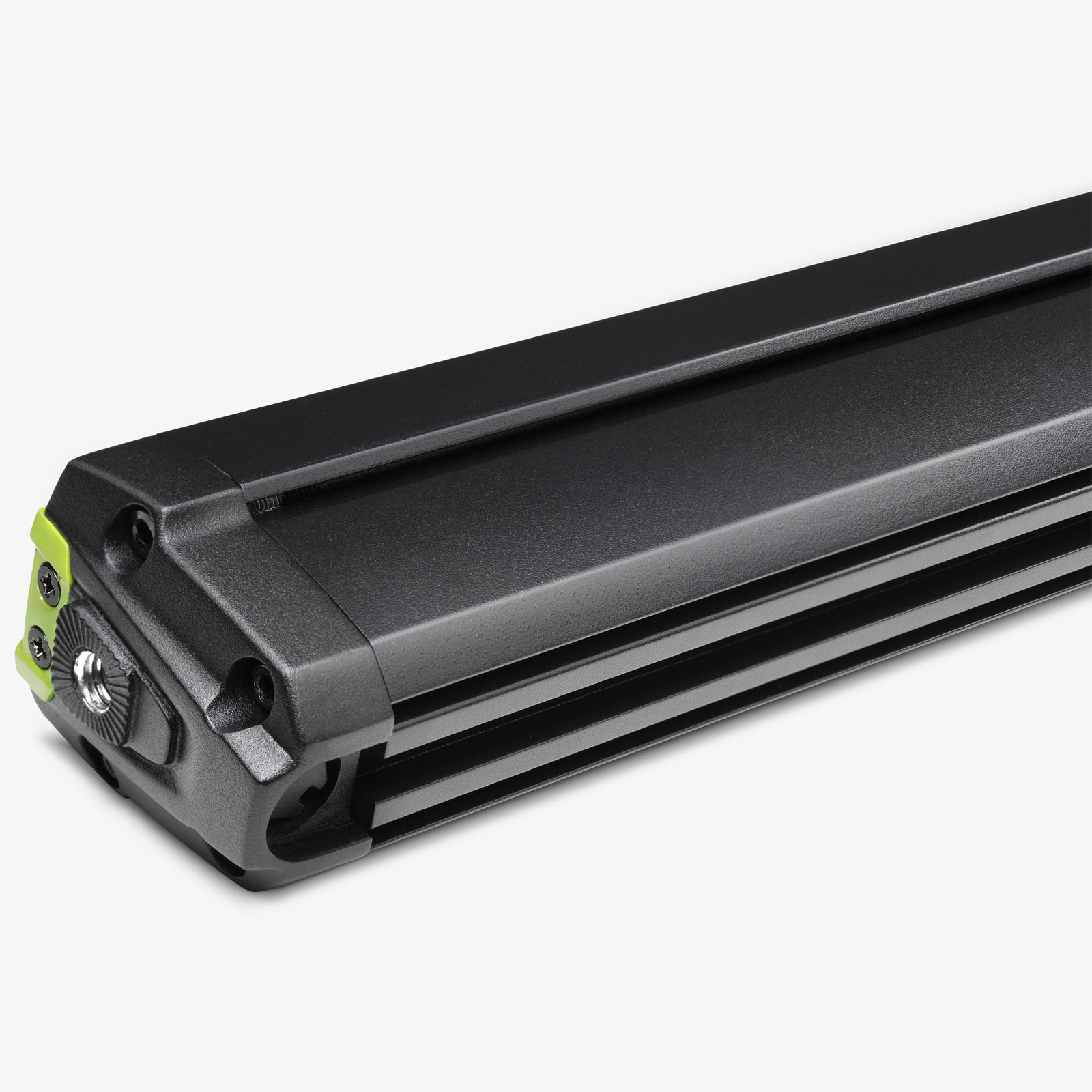

Because single row light bars are often used in tight spaces such as inside grilles and underneath roof racks, we have engineered our Hyperion light bars to be as thin as possible by minimising wasted space internally. When using the end-mount legs this bar is only 52.1mm high, and when using the under-mount legs it is still only 63.6mm high.
A light bar that’s distinctly yours.
Our Hyperion LED light bars combine outstanding real-world performance and toughness with an aggressive design and extensive customisation options.
Top quality LED chips and reflectors
Starting with the basics, this light bar is constructed with high-performance OSRAM® OSLON SSL 150 LED chips. These premium chips are extremely efficient, supremely robust, resistant to corrosion and have a 150° viewing angle, which is very important in light bar applications where beam width is key. They also have very low thermal resistance, which means they will remain cooler than other LED chips and their performance will not degrade with extended use. The 5700K colour temperature offers balanced, natural lighting for excellent visibility without causing eye strain from glare.
We have matched these chips with expertly engineered, vacuum-metallised polycarbonate reflectors, which allowed us to create a 180 degree overall beam angle. This means not only can you see far into the distance, but are also made aware of close-up hazards such as kangaroos in time to take evasive action.
Robotic manufacturing
The housing and lens are robotically manufactured and assembled, ensuring the light bar is perfectly sealed against dust and water ingress, and we use the highest quality materials to ensure they’ll last for many years even in harsh conditions.
Specifications
Materials | 6063 aluminium housing UV hardcoated polycarbonate lens Vacuum-metallised aluminium reflectors |
---|---|
LED type | OSRAM OSLON® SSL 150 |
Power | 45W |
Beam distance | 1 lux @ 300m (high) / 1 lux @ 127m (low) |
Output (raw) | 3,780 lumens |
Output (effective) | 2,700 lumens (high) / 488 lumens (low) |
Peak intensity | 90,000 candela |
Colour temperature | 5700K |
DRL colour | Settable orange / white |
Operating voltage | 10 – 30V DC |
Current draw (12V) | 3.09A (high) / 0.58A (low) |
Current draw (24V) | 1.6A (high) / 0.29A (low) |
DRL power draw | 0.25A @ 12V / 0.14A @ 24V |
Operating temperature | -30°C to 65°C |
Weight | 0.8kg |
Certifications | CE, CISPR25, ISO 7637-2:2004 |
PACKAGE CONTENTS
1x | 10" Hyperion LED light bar |
---|---|
1x | Set end-mount legs |
1x | Set under-mount legs |
1x | Wiring harness |
3x pair | Coloured inserts (blue, black, grey) |
DIMENSIONS
SKU | HKLB-HPR-10S |
Model # | HKLB-HPR-10S |
Barcode # | 9350466004526 |
Brand | Hard Korr |
Shipping Weight | 2.8220kg |
Shipping Width | 0.125m |
Shipping Height | 0.133m |
Shipping Length | 0.520m |
Shipping Cubic | 0.008645000m3 |
