Hard Korr Hyperion Series LED Light Bar 30" Single Row - Wiring Harness Included

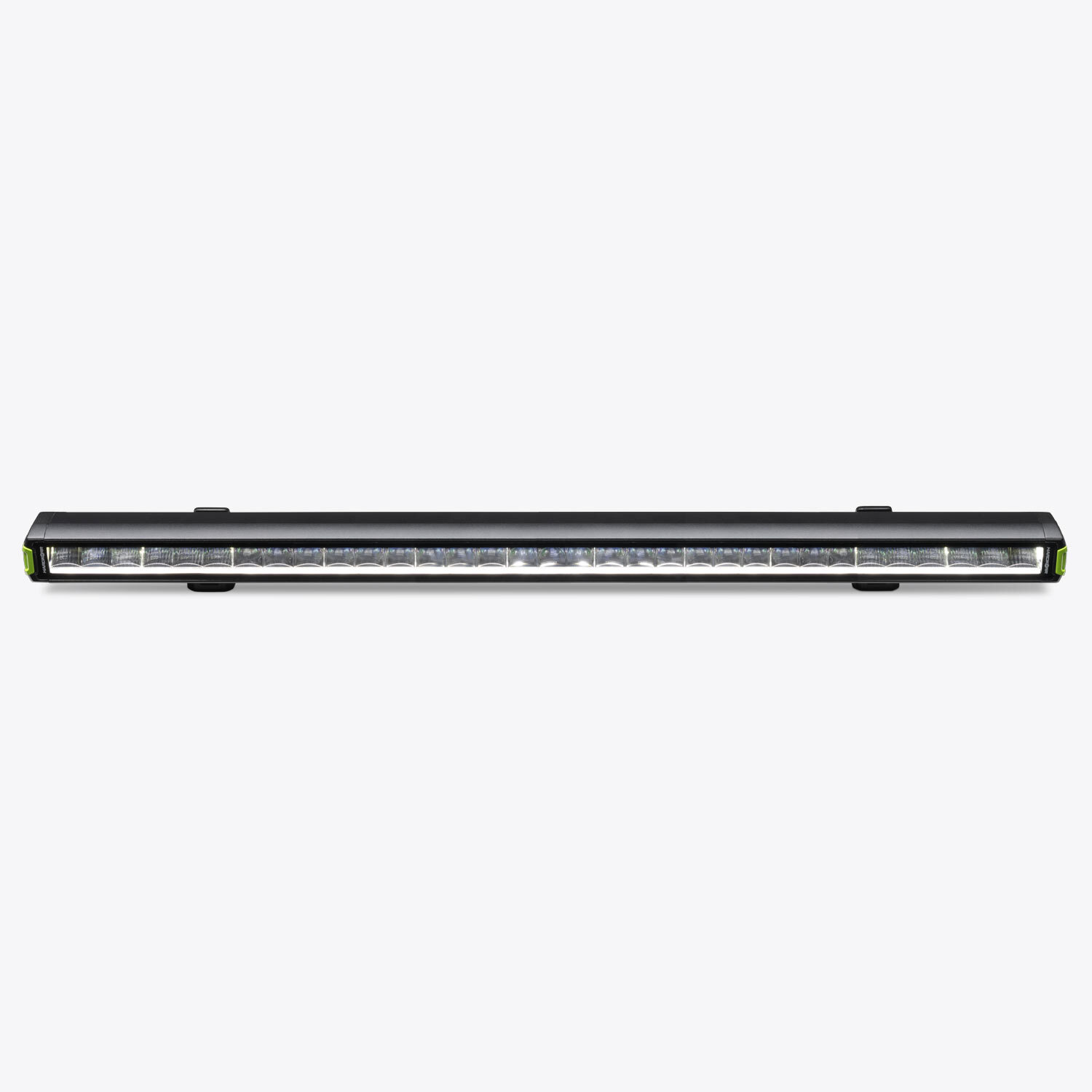

Hyperion 30″ Single Row Light Bar

Our Hyperion light bars don’t just outperform all the others, they look the goods as well. With high and low beam modes, switchable orange and white daytime running light (DRL), and the ability to customise it with different coloured side inserts, you can make this light bar distinctly yours.









A light bar that’s distinctly yours.

Our Hyperion LED light bars combine outstanding real-world performance and toughness with an aggressive design and extensive customisation options.

Top quality LED chips and reflectors

Starting with the basics, this light bar is constructed with high-performance OSRAM® OSLON SSL 150 LED chips. These premium chips are extremely efficient, supremely robust, resistant to corrosion and have a 150° viewing angle, which is very important in light bar applications where beam width is key. They also have very low thermal resistance, which means they will remain cooler than other LED chips and their performance will not degrade with extended use. The 5700K colour temperature offers balanced, natural lighting for excellent visibility without causing eye strain from glare.

We have matched these chips with expertly engineered, vacuum-metallised polycarbonate reflectors, which allowed us to create a 180 degree overall beam angle. This means not only can you see far into the distance, but are also made aware of close-up hazards such as kangaroos in time to take evasive action.

Robotic manufacturing

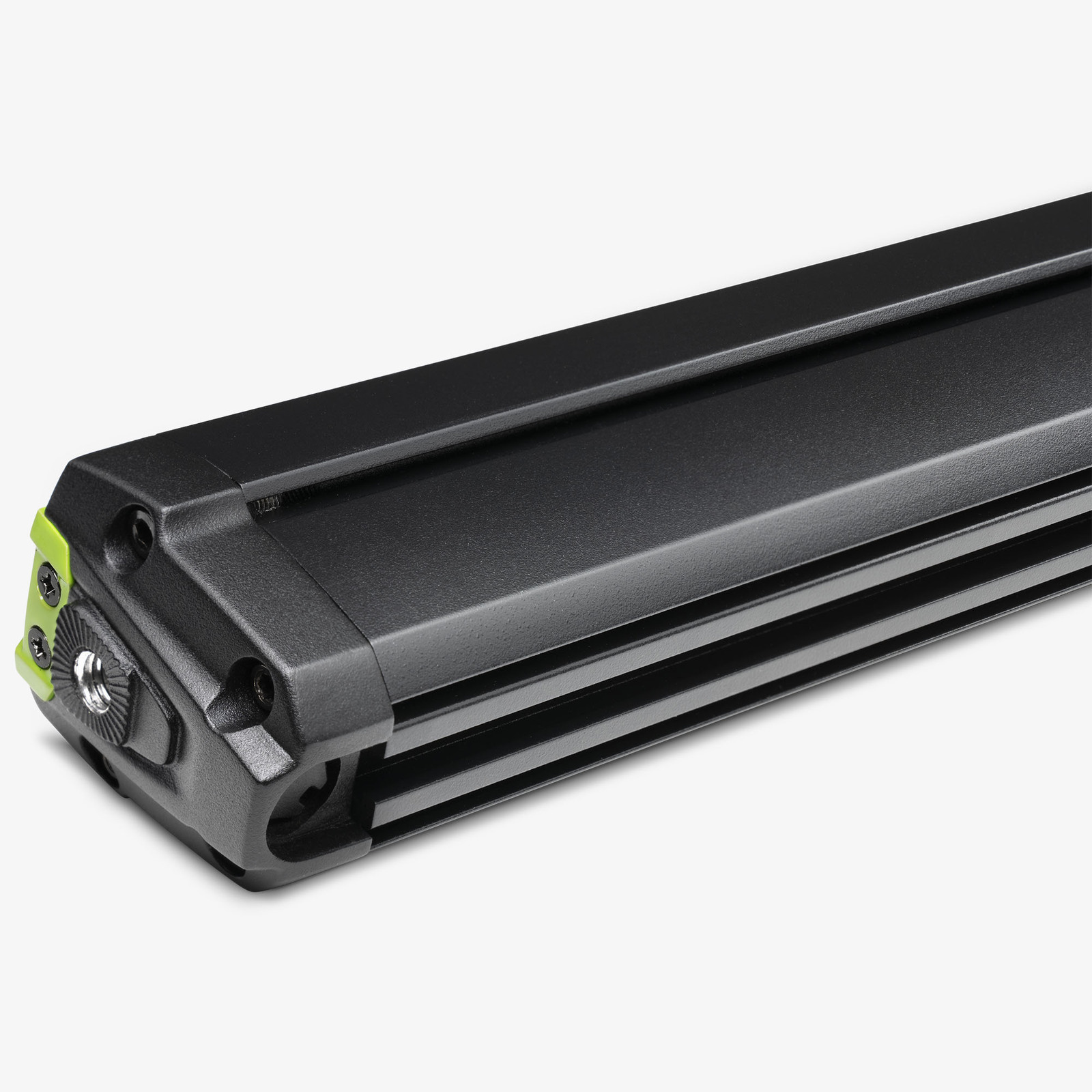

The housing and lens are robotically manufactured and assembled, ensuring the light bar is perfectly sealed against dust and water ingress, and we use the highest quality materials to ensure they’ll last for many years even in harsh conditions.

All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 5-year Australian warranty and a 30-day money back guarantee.

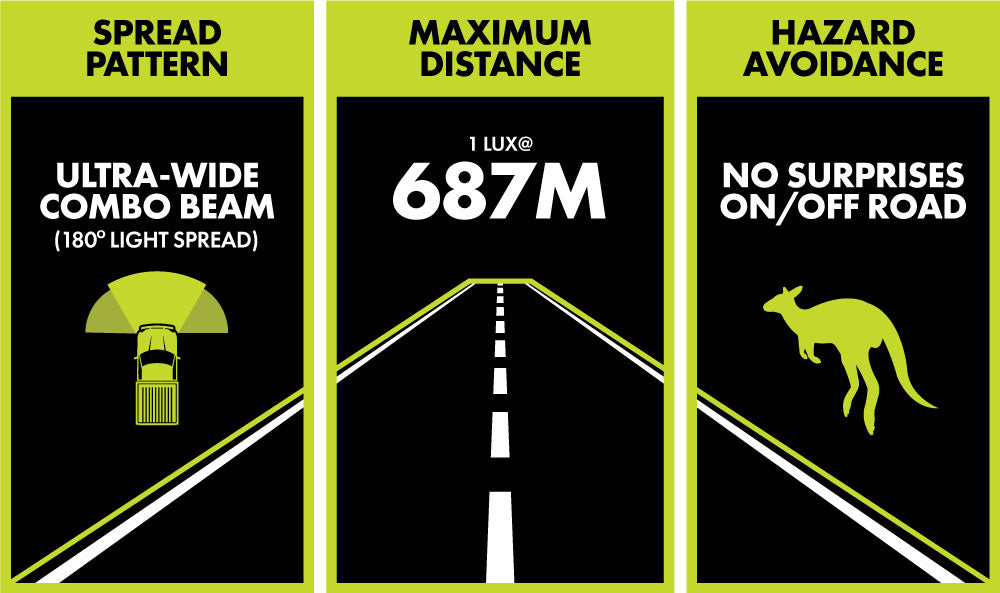

HYPERFLOOD BEAM PATTERN

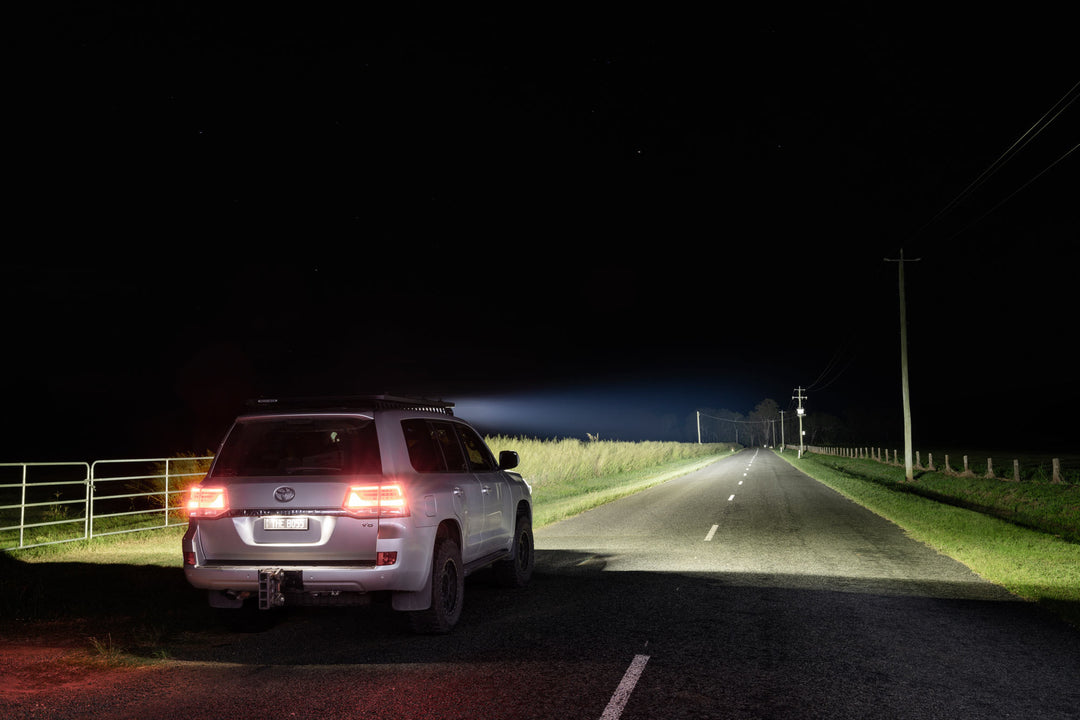

Turn night into day

Don't let darkness take the wheel. See hazards farther, react faster with Hyperion light bars. Ultra-wide beams illuminate your path, revealing dangers before they become threats. Drive with confidence, day or night. Upgrade your ride, upgrade your safety.



Extremely customisable

Make it yours

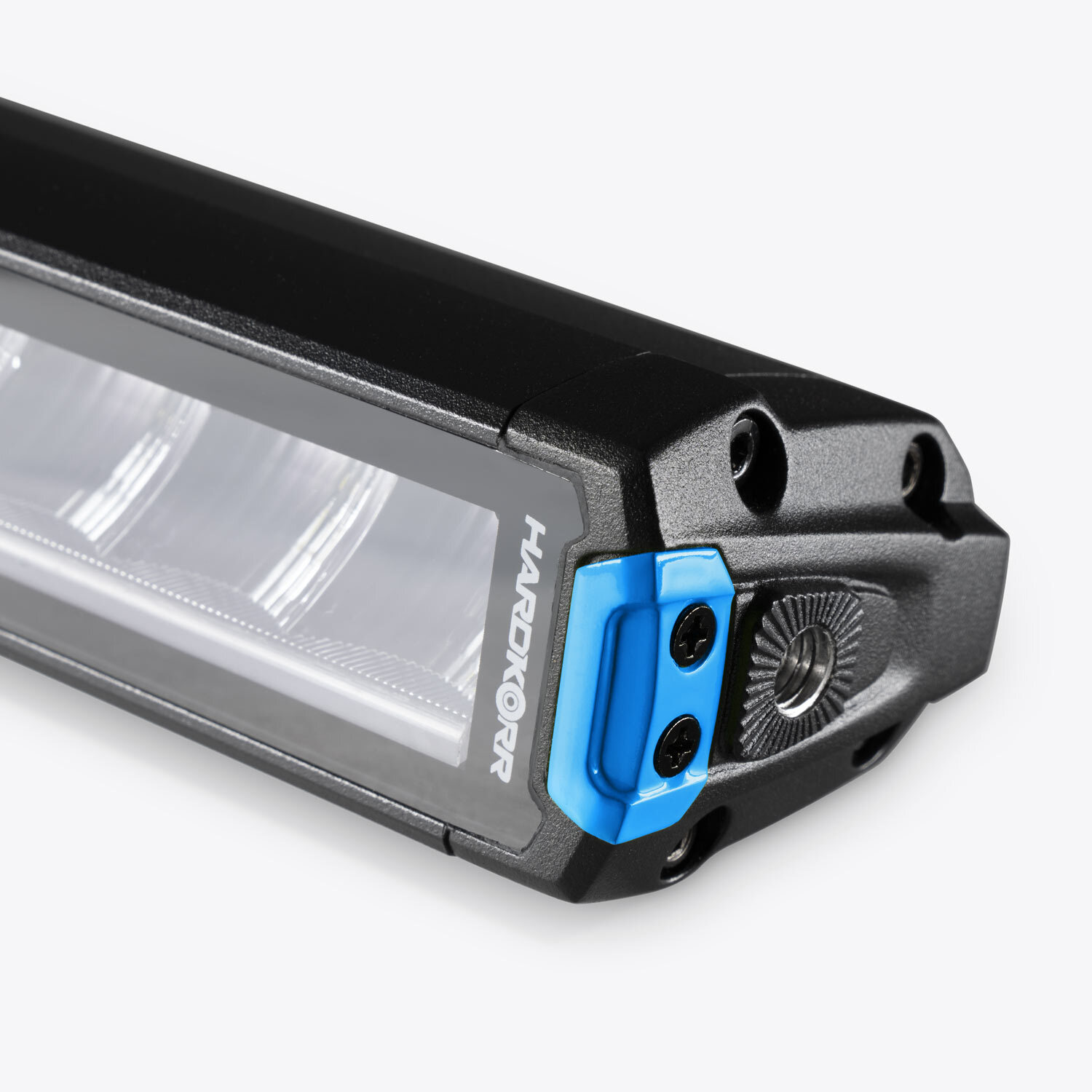

Finally, we’ve made sure there is plenty of customisability so you have the freedom to match this light bar to your vehicle and application. We’ve included three pairs of different coloured side inserts in the pack, and have another seven colour options available for separate purchase*.

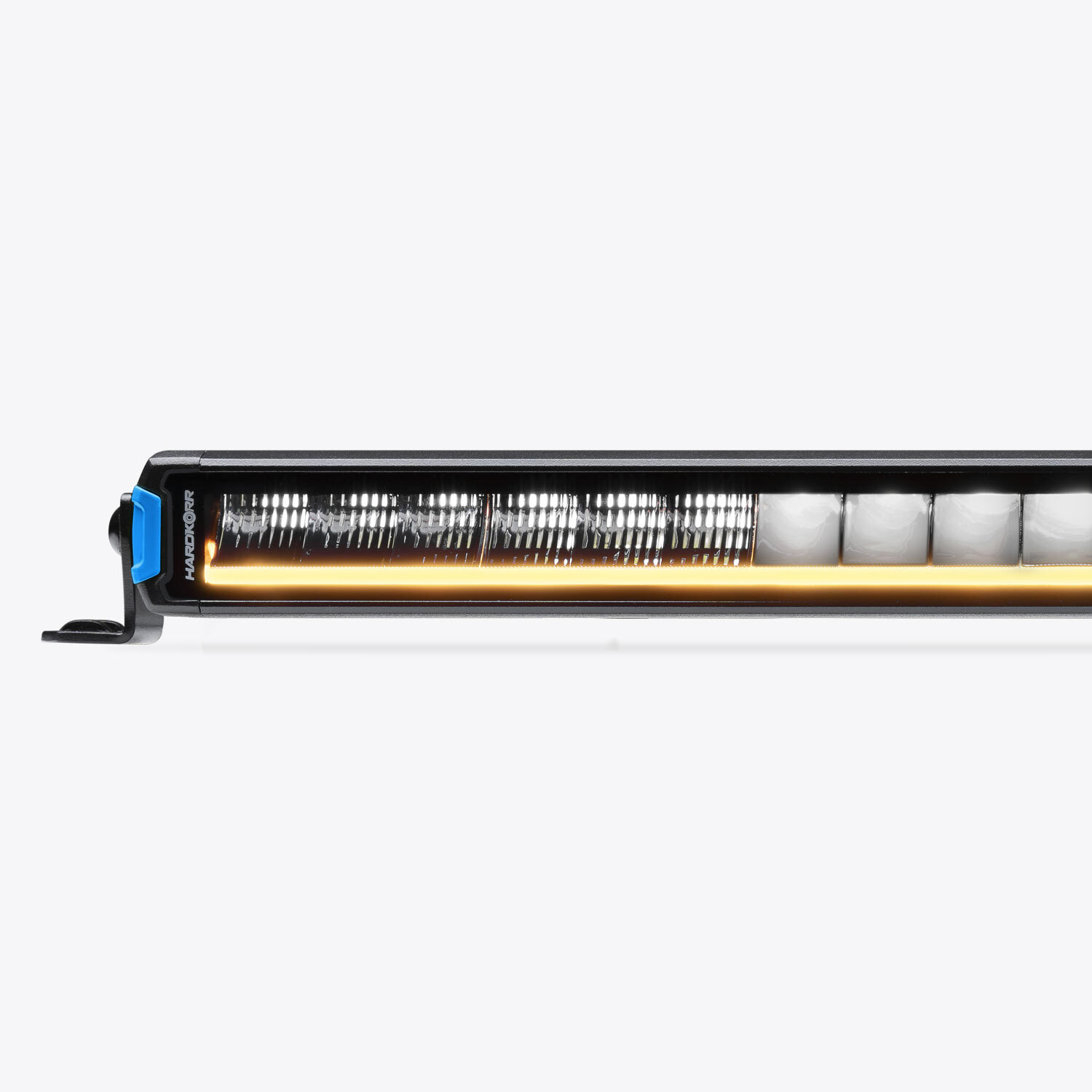

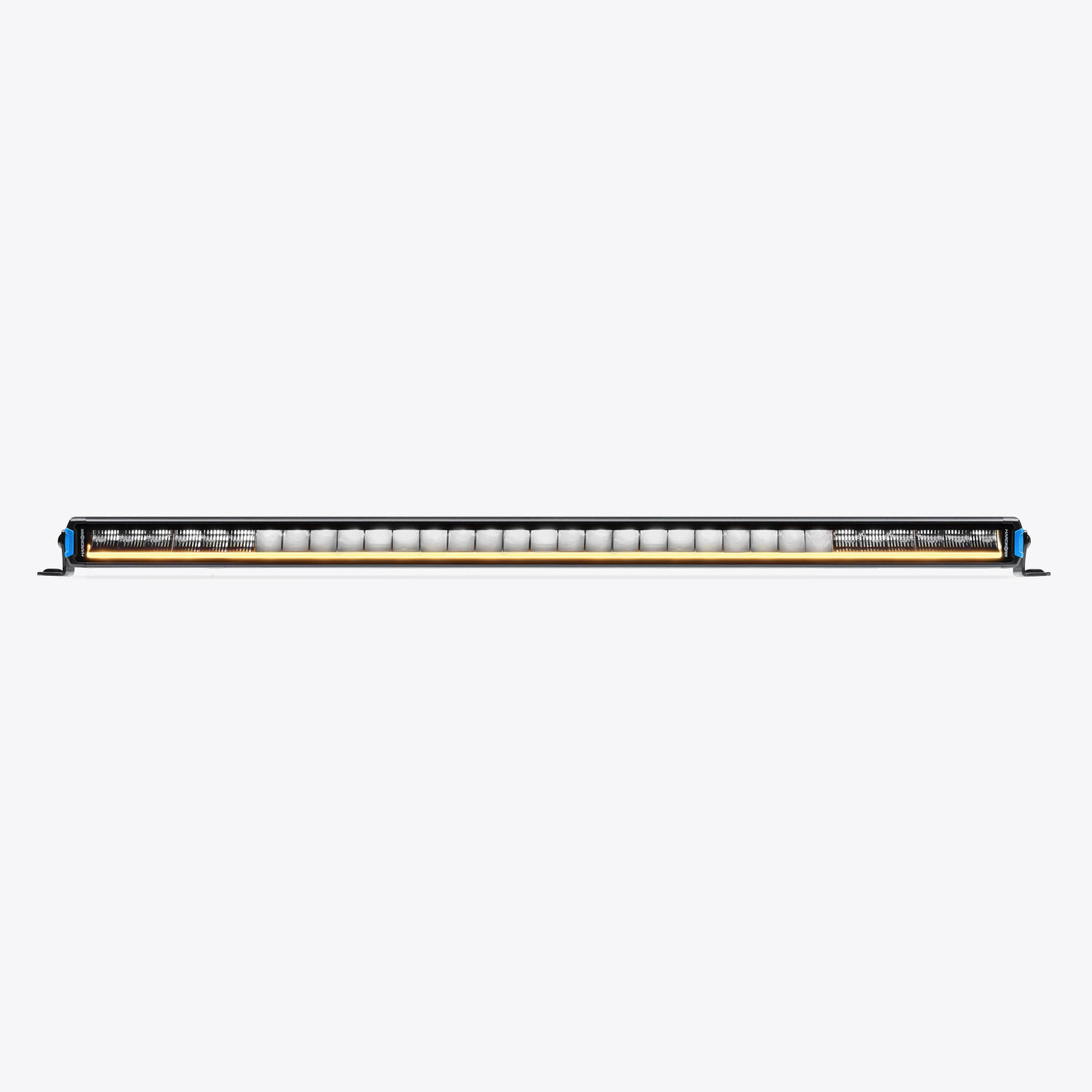

Additionally, each light bar can be switched between high and low modes, and you can also switch between orange and white daytime running lights (DRLs). For further protection and customisation, we also offer black, orange and clear covers for purchase.

* Colour inserts are sold separately



As thin as possible

Intelligent Design

Because single row light bars are often used in tight spaces such as inside grilles and underneath roof racks, we have engineered our Hyperion light bars to be as thin as possible by minimising wasted space internally. When using the end-mount legs this bar is only 52.1mm high, and when using the under-mount legs it is still only 63.6mm high.

Specifications

Materials 6063 aluminium housing
UV hardcoated polycarbonate lens
Vacuum-metallised aluminium reflectors
LED type OSRAM OSLON® SSL 150
Power 165W
Beam distance 1 lux @ 687m (high) / 1 lux @ 290m (low)
Output (raw) 13,860 lumens
Output (effective) 8,939 lumens (high) / 1,616 lumens (low)
Peak intensity 472,000 candela
Colour temperature 5700K
DRL colour Settable orange / white
Operating voltage 10 – 30V DC
Current draw (12V) 11.1A (high) / 1.9A (low)
Current draw (24V) 5.69A (high) / 1.04A (low)
DRL power draw 0.96A @ 12V / 0.51A @ 24V
Operating temperature -30°C to 65°C
Weight 2.2kg
Certifications CE, CISPR25, ISO 7637-2:2004

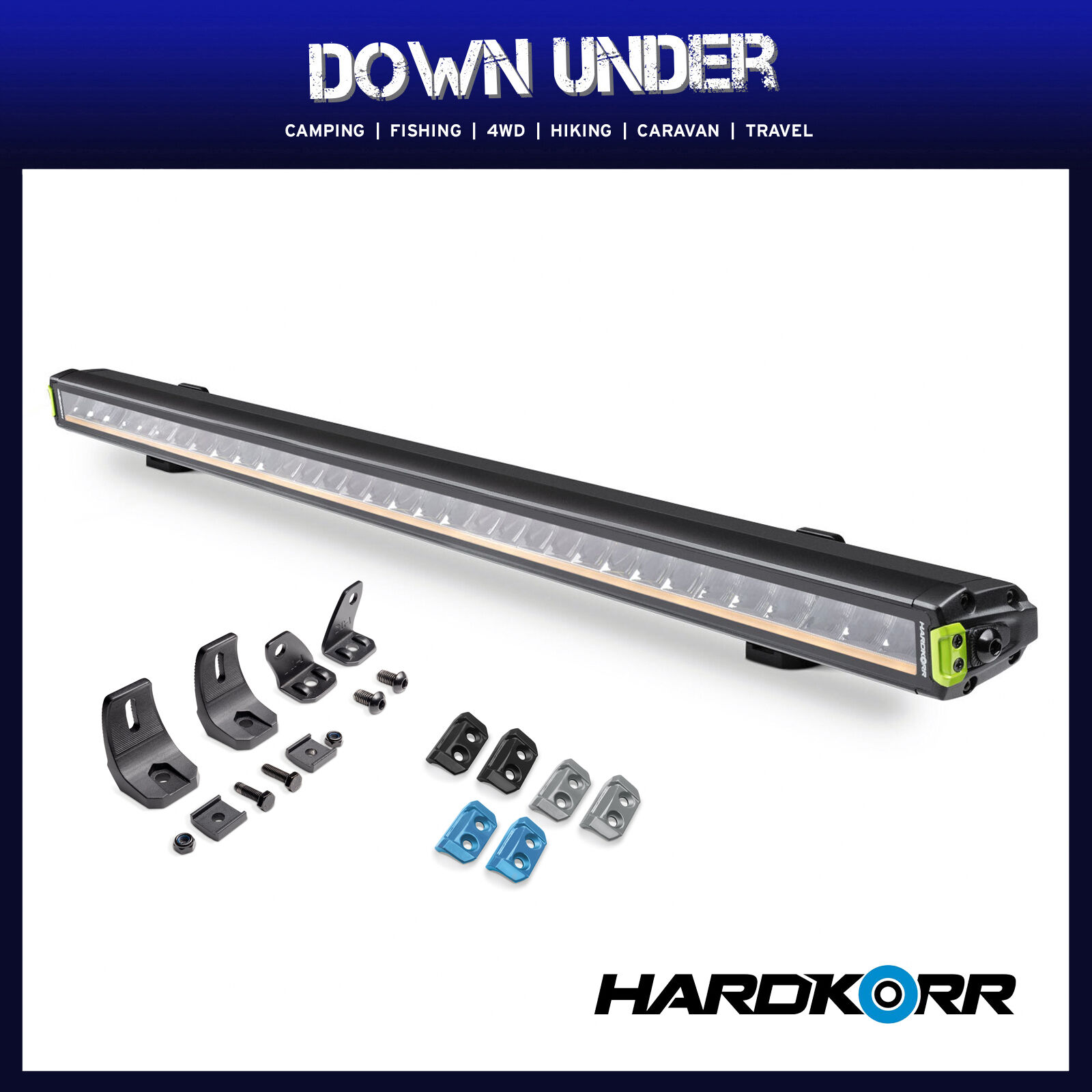

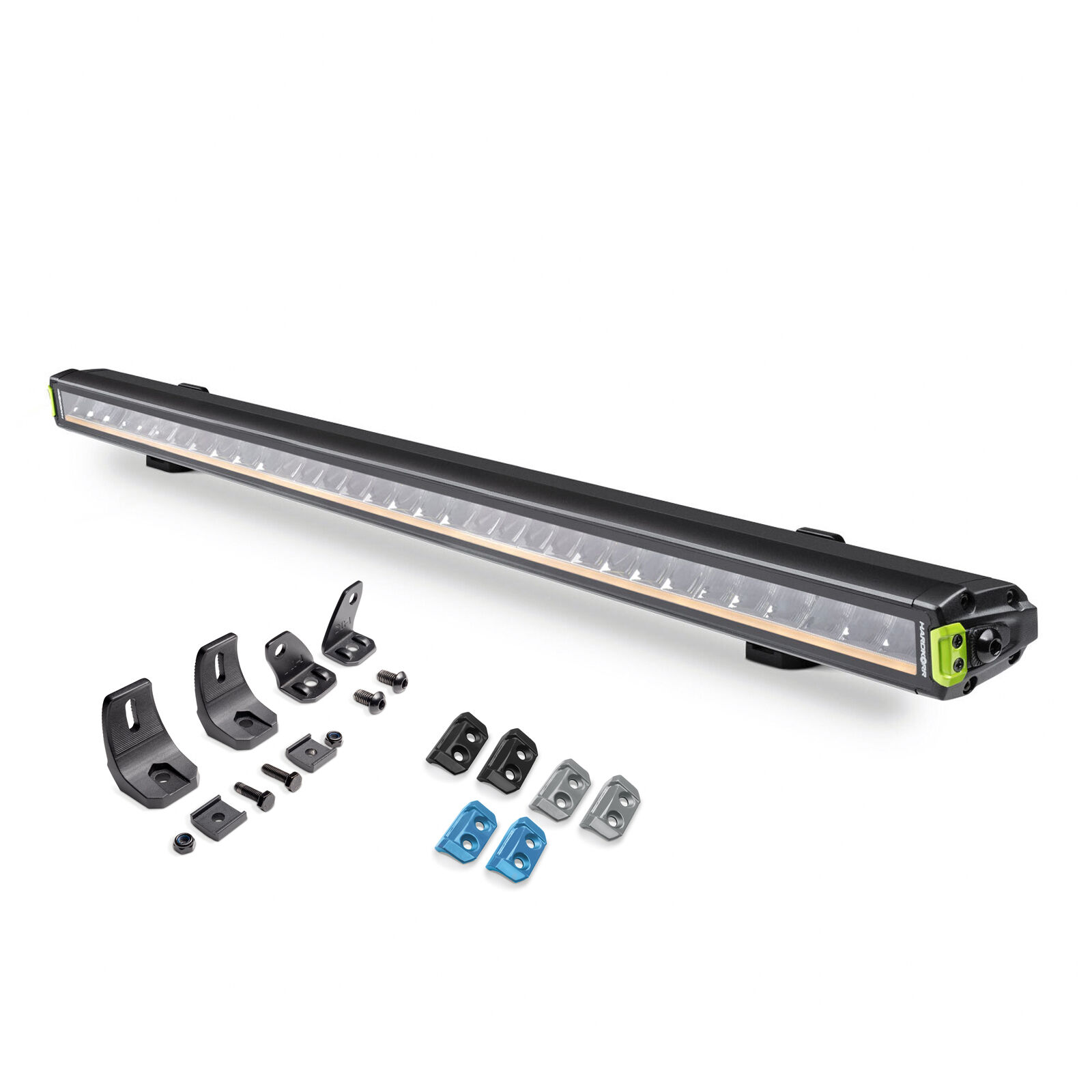

Pack Contents

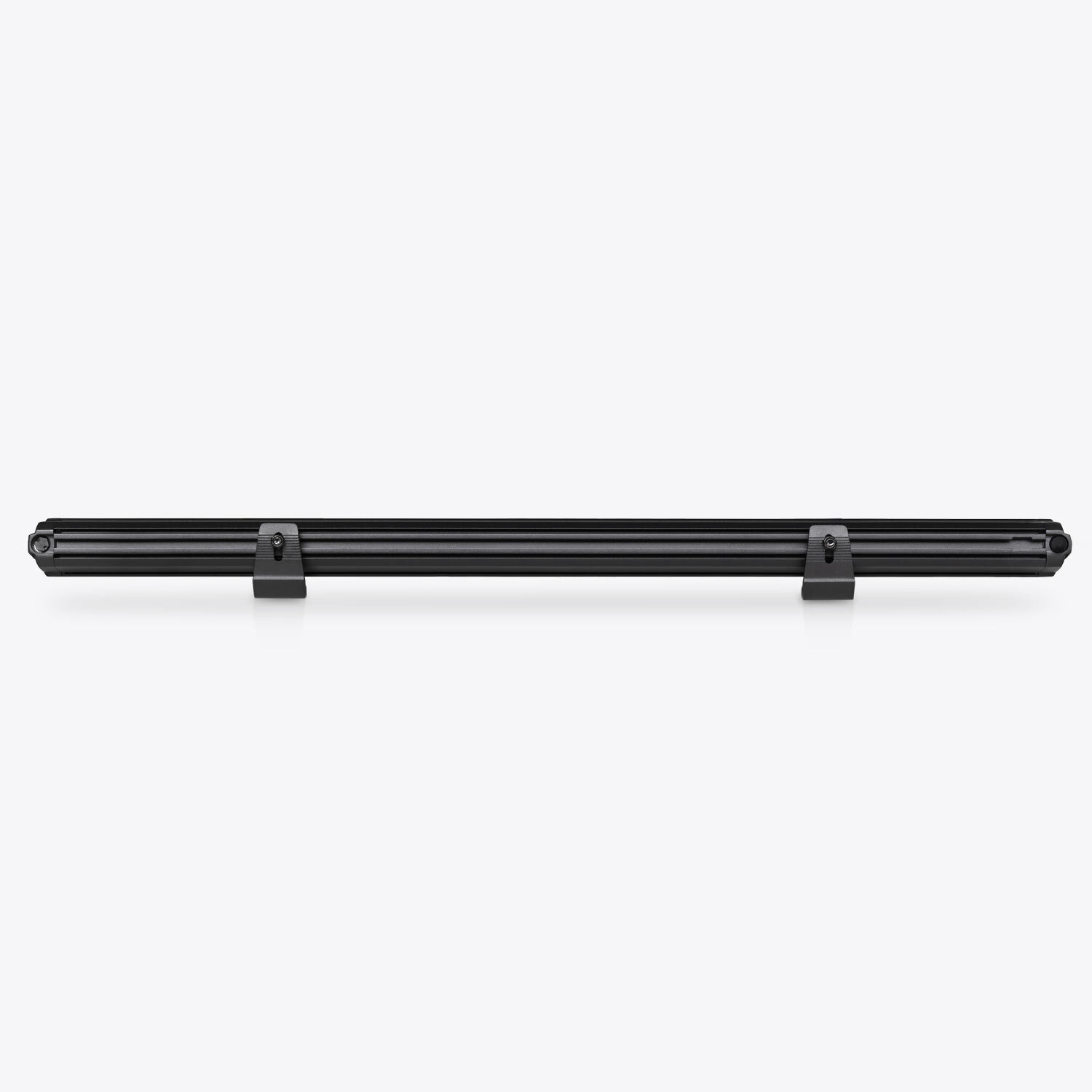

1x 30" Hyperion LED light bar

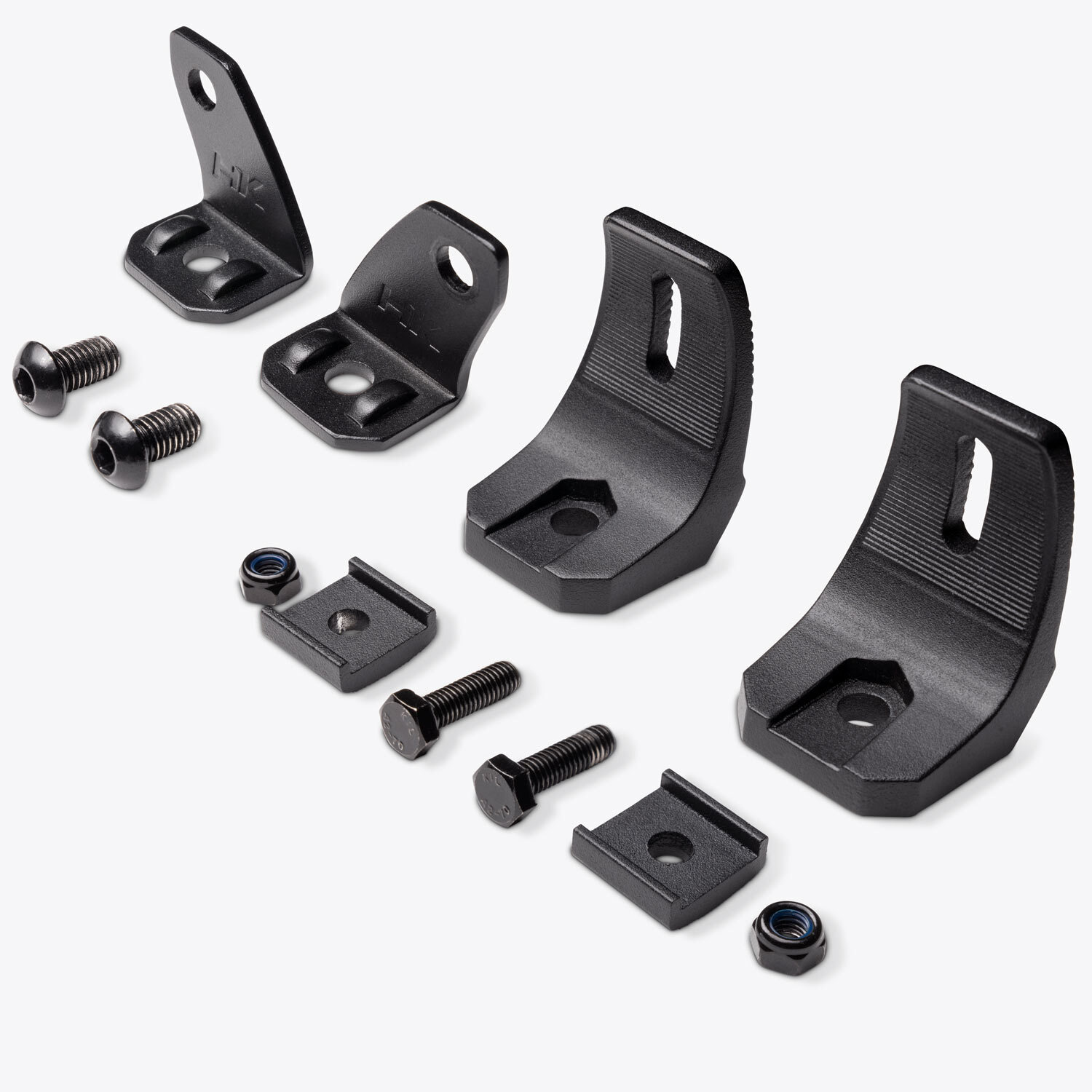

1x Set end-mount legs
1x Set under-mount legs
1x Wiring harness

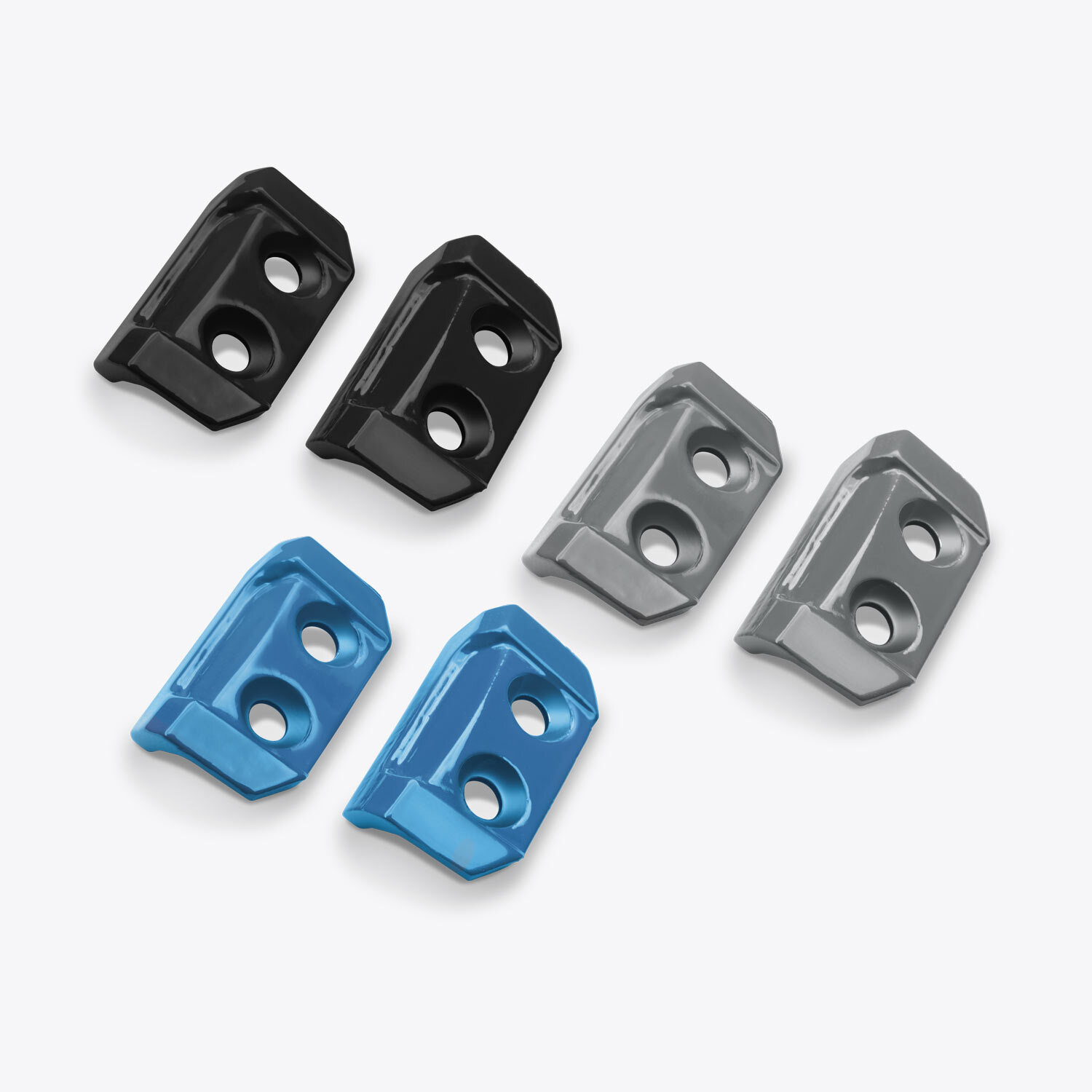

3x pair Coloured inserts (blue, black, grey)

Dimensions





SKU HKLB-HPR-30S
Model # HKLB-HPR-30S
Barcode # 9350466004540
Brand Hard Korr
Shipping Weight 4.5300kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 1.100m
Shipping Cubic 0.011000000m3
