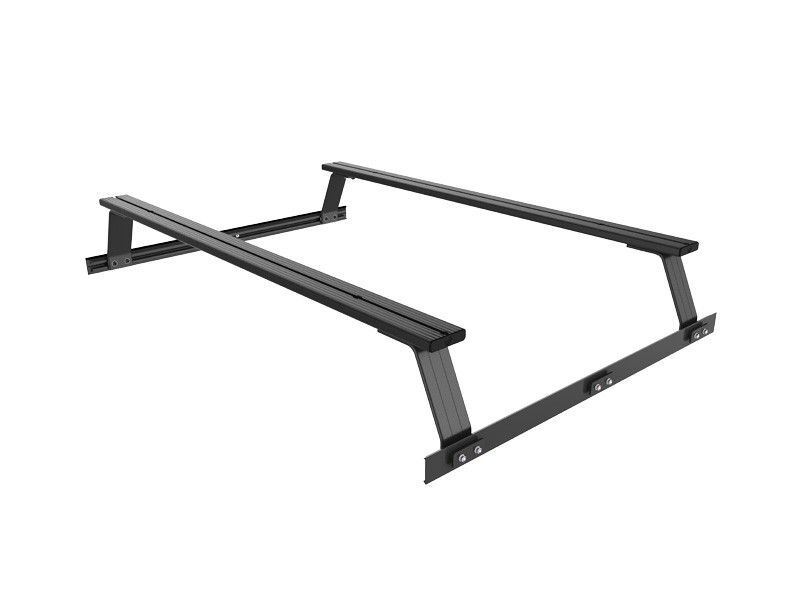

Pick-Up Truck Load Bed Load Bar Kit / 1345mm(W) A set of Ute Bed Load Bars used to transport gear over the bed of your ute when there’s no need for a full Front Runner Rack. This low profile, smaller footprint solution includes 4 188mm Load Bed Legs, 2 1345mm Load Bars, 2 Ute Load Bed Tracks and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the bed of the vehicle.
Info
A set of Pickup Bed Load Bars used to transport gear over the bed of your truck when there’s no need for a full Front Runner Rack. This low profile, smaller footprint solution includes 4 188mm Load Bed Legs, 2 1345mm Load Bars, 2 Pickup Load Bed Tracks and fitting instructions - all the components necessary to mount the Front Runner Load Bars to the bed of the vehicle.
You may not have the need for a full sized bed rack and find that you can get by using a set of Front Runner Load Bars.
The Load Bars are mounted via Load Bed Legs that bolt directly onto a set of Front Runner bed mounted tracks.
Allows for gear to be mounted above the pick up’s load bay.
The load bay retains its load carrying ability, while the drop down door functions as usual.
Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.
Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
The Load Bars and Load Bed Legs can be used in the future as components to build a complete Front Runner Roof Rack.
Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.
*AM General, Giant Motors, Sang Yong, American, Motors, Chevrolet, Dodge, Ford, Foton, GMC, GWM, Holden, Hyundai, International, Isuzu, JMC, Land Rover, Mahindra, Mazda, Mercedes-Benz, Mitsubishi, Nissan, Ram, Tata, Toyota, Volkswagen
KRLB007 - Pickup Truck Load Bed Load Bar Kit / 1345mm(W) - by Front Runner
Consisting of:
2 x LASS026 - Universal Load Bed Leg / Tall (Pair) - by Front Runner
1 x LBSK015 - Roof Load Bar Pair 1345mm(W) - by Front Runner
1 x TRBU001 - Pickup Load Bed Tracks / 1000mm(L) - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 9kg (19lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width 130mm (5")
Length 1450mm (57")
Height 235mm (9")
Shipping Weight:
Weight 10.2kg (22.5lbs)
| SKU | KRLB007 |
| Model # | KRLB007 |
| Brand | Front Runner |
| Shipping Weight | 10.2000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.235m |
| Shipping Length | 1.450m |
| Shipping Cubic | 0.044297500m3 |
