Info

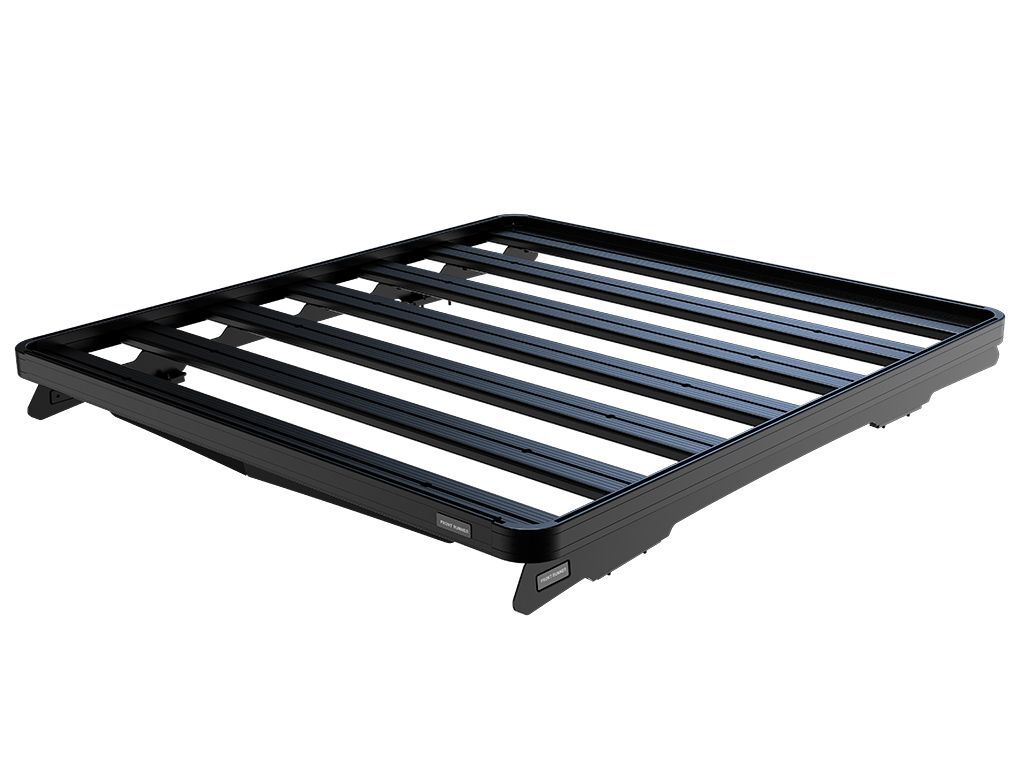

This 1358mm/53.5" long, full-size, Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Ram Crew Cab. Drilling into the vehicle's roof is required.

All Front Runner Rack Kits contain installation instructions, as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

For further information on installation, please see the fitment instructions in the INSTALL tab.

Note: Sunroof 'vent mode' is not compatible on Ram 1500 (2009-2018) or Ram 2500/3500 (2019-Current). The sunroof may be opened all the way if it retracts into the roof. If you wish to open the sunroof in 'vent mode' you may install Ram 1500/2500/3500 Crew Cab (2009-Current) Slimline II Roof Rack Kit – by Front Runner if you do not mount a table underneath.

KRDR011T - Ram 1500/2500/3500 Crew Cab (2009-Current) Slimline II Roof Rack Kit / Low Profile – by Front Runner

Consisting of:
1x FADR003 - Ram 1500 Crew Cab(2009-Curr)Foot Rails/ Low
1x RRSTJ07 - SLII Tray - 1425mm(W)X1358mm(L)

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 29.7kg (65.48lbs)

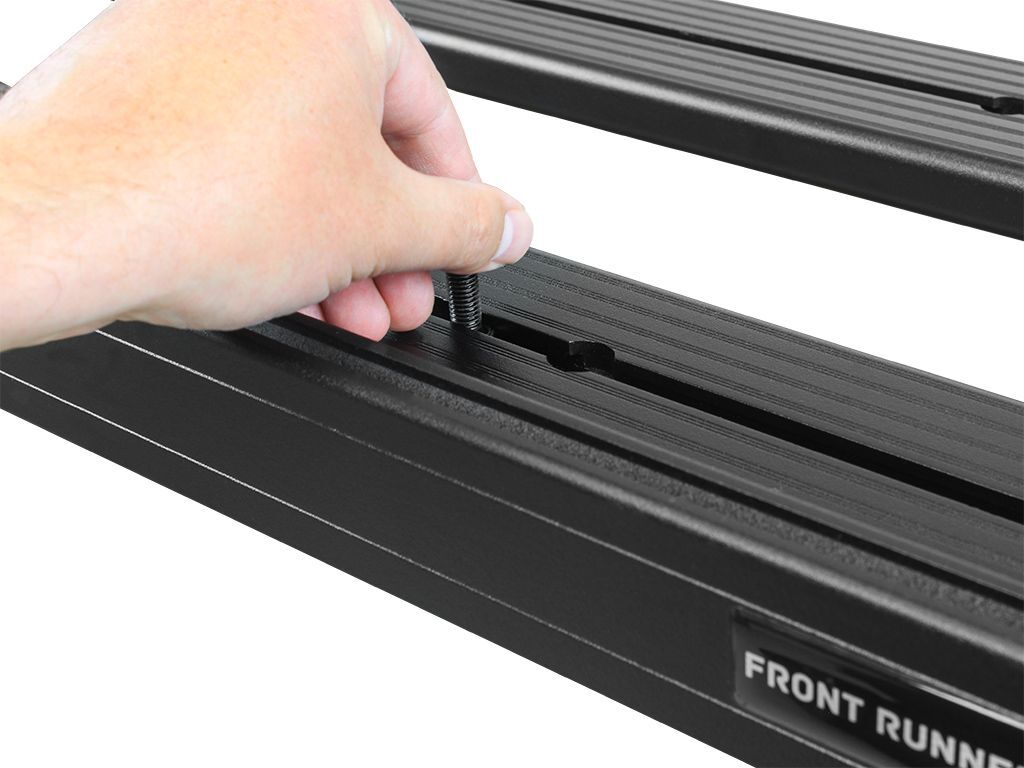

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 445mm (18")
Length: 1730mm (68")
Height: 250mm (10")

Shipping Weight:
Weight: 28.4kg (62lbs)
