Info

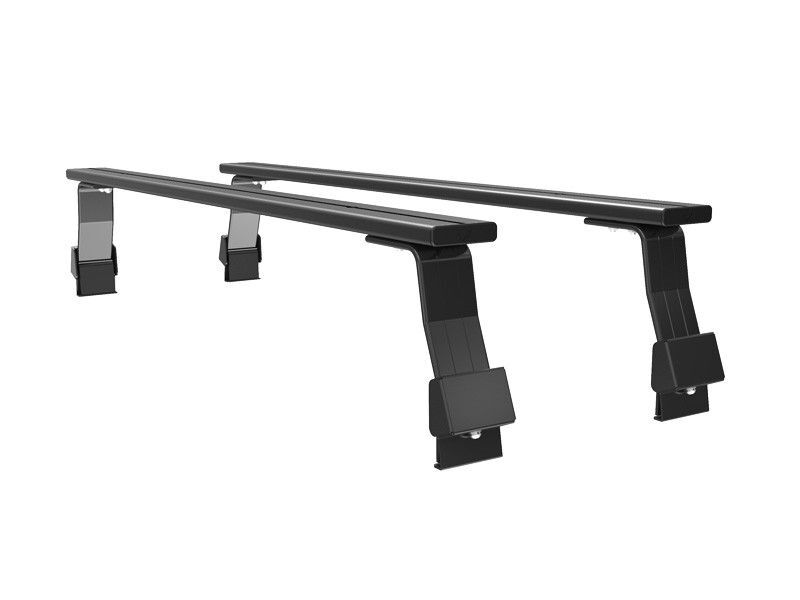

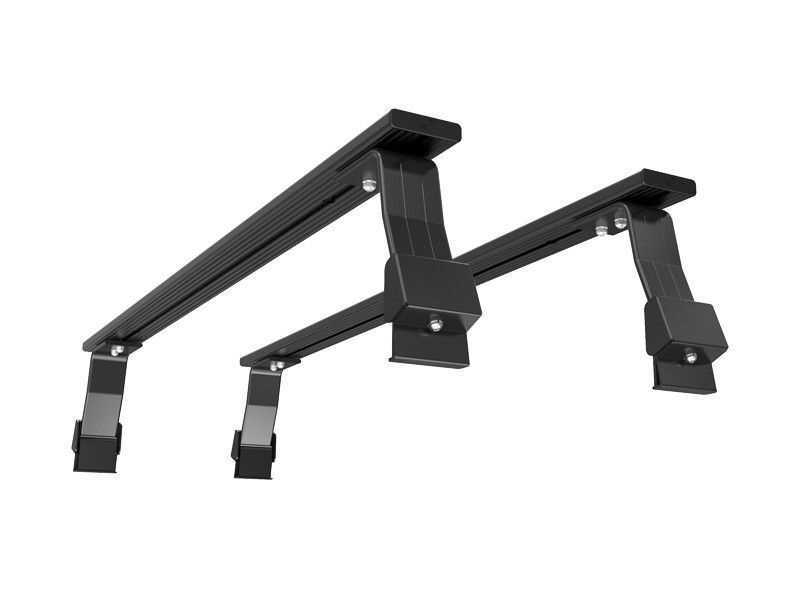

A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 190mm Gutter Mount legs, 2 1475mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions - all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.

KRVK003L - Volkswagen T3 Transporter/Kombi Load Bar Kit / Gutter Mount - by Front Runner


Consisting of:

2 x LASS105 - No 5 Leg 190mm (Pair) - by Front Runner
1 x LBSK017 - Roof Load Bar Pair 1475mm(W) - by Front Runner


Material used:

Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 7kg (16lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.

If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.



Shipping Dimensions:

Width 180mm (7")
Length 1590mm (63")
Height 120mm (5")

Shipping Weight:

Weight 8.6kg (19.0lbs)
